External Server Settings

Click [External Server Settings] - [External Server Settings] on the menu of [User Auth./Account Track] tab to display this screen.

You can view a list of the currently registered external authentication servers. The default server has its [Default] radio button checked.

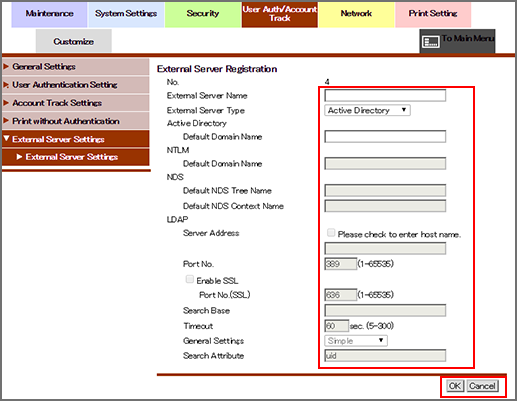

Edit

Register an external authentication server. Also modify settings for a registered external authentication server.

  1. Click any blank area on the list, or click [Edit] for an external authentication server.

  2. Specify or modify each item.

  3. Click [OK]. Clicking [Cancel] cancels the setting.

  4. Click [OK] on the setting complete screen.

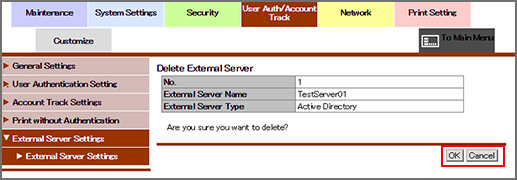

Delete

Deletes a registered external authentication server.

  1. Click [Delete] of the external authentication server to be deleted.

  2. Click [OK] on the confirmation screen. Click [Cancel] to cancel the deletion.

  3. Click [OK] on the setting complete screen.

Default Setting

  1. To specify an external authentication server as default, select the radio button of the server in the [Default] field.

  2. Click [OK]. Clicking [Cancel] cancels the setting.

  3. Click [OK] on the setting complete screen.
