Communication Check
Checks the IPsec communication.
Access IPsec to display the IPsec Operation Selection screen.
Select the [Communication Check] radio button, and click [OK].
The [Communication Check] screen is displayed.

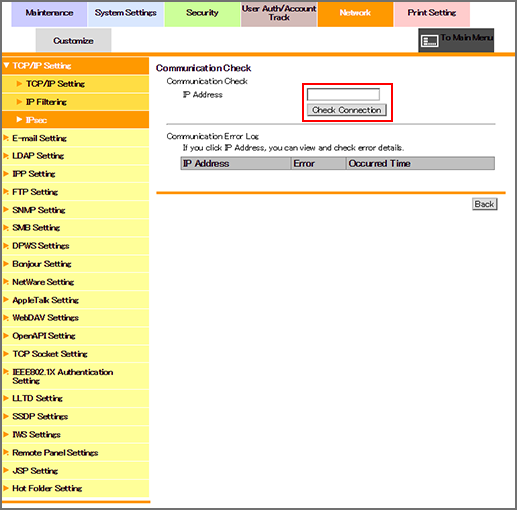

Enter the IP address of the peer in the [IP Address] field, and click [Check Connection].
The connection check is performed. This may take up to 5 minutes.
Click [OK] on the setting complete screen.
The check result is displayed. If a communication error has occurred, message [Connection failed.] is displayed. If a communication error log exists, [IP Address], [Error], and [Occurred Time] are displayed.

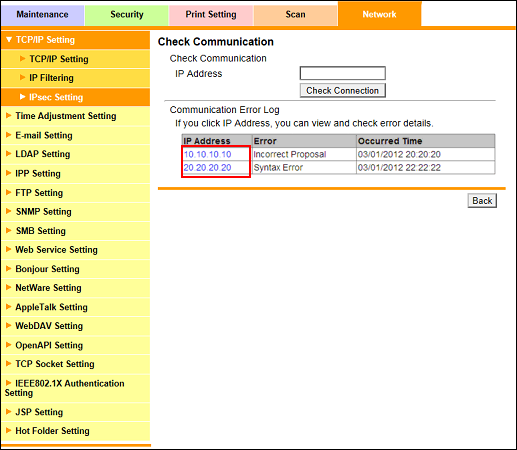

To check the communication error log, click an IP address.
Click on [Back].
The screen returns to the [Check Communication] screen.
