FTP TX Setting

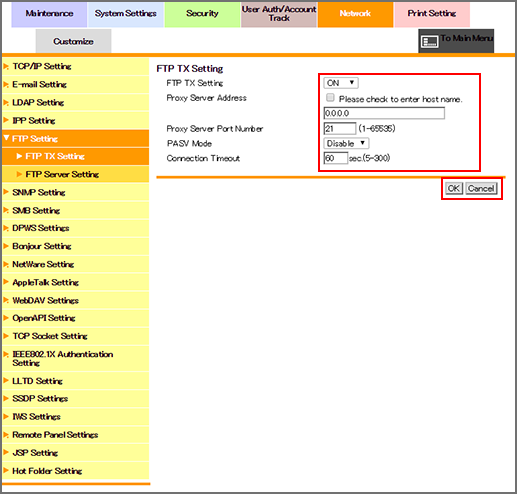

Click [FTP Setting] - [FTP TX Setting] on the menu of [Network] tab to display this screen.

This screen allows you to make settings for the FTP transmission.

1. To use the FTP transmission function, select [ON] from the [FTP TX Setting] drop-down list.

2. Enter the proxy server address. To enter the host name, select the [Please check to enter host name.] checkbox.

3. Specify [Proxy Server Port Number] as necessary.

4. To use PASV mode, select [Enable] from the [PASV Mode] drop-down list.

5. If necessary, specify the timeout period of communication with the FTP server in [Connection Timeout].

6. Click [OK]. Clicking [Cancel] cancels the setting.

7. Click [OK] on the setting complete screen.
