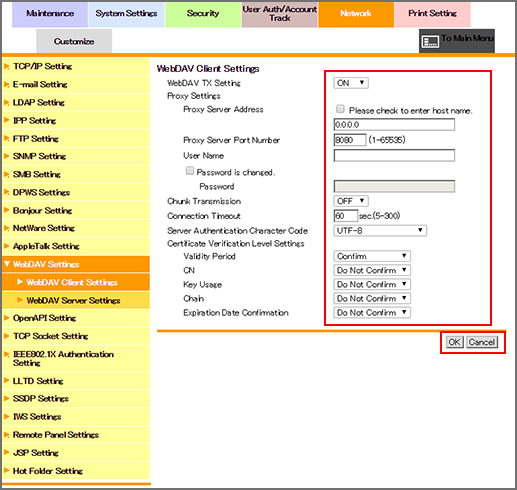

WebDAV Client Settings

Select either [ON] or [OFF] from the [WebDAV TX Setting] drop-down list.

Enter [Proxy Server Address]. To enter the host name, select the [Please check to enter host name.] check box.

Enter [Proxy Server Port Number].

Enter [User Name].

Enter [Password]. If a password has already been set, [Password is currently set] is displayed. To change the password, select the [Password is changed.] checkbox, and enter a new password.

Select either [ON] or [OFF] from the [Chunk Transmission] drop-down list.

Enter [Connection Timeout].

Select either [UTF-8] or [Windows Code Page] from the [Server Authentication Character Code] drop-down list.

Select a desired option from the drop-down lists provided for each setting item under [Certificate Verification Level Settings].

[Validity Period]: Checks whether the certificate's validity period is still valid.

[CN]: Checks whether the Common Name (CN) of the certificate is identical to the address of the server.

[Key Usage]: Checks whether the certificate is used according to the intended usage approved by the issuer of the certificate

[Chain]: Checks whether or not the certificate chain (certificate pass) has a problem. The chain is verified by referring to the external certificates managed by the machine.

[Expiration Date Confirmation]: Checks whether or not the certificate has expired.

Click [OK]. Clicking [Cancel] cancels the setting.

Click [OK] on the setting complete screen.

If you have changed any setting, turn the machine power off then on.
