Select Printer Setting

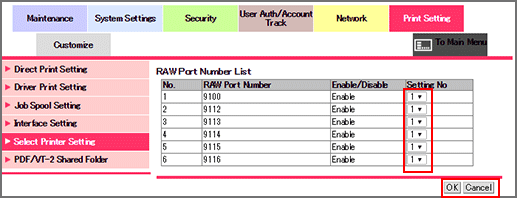

Click [Select Printer Setting] on the menu of [Print Setting] tab to display this screen.
This setting can be made also from [Controller] on the [MACHINE] screen. For details about the setting, refer to Select Printer Setting: Assigning Output Setting Number to Ports.
This screen allows you to assign the printer settings specified in [Direct Print Setting] to each of six RAW port numbers.
Select a desired default setting number from the drop-down list in [Setting No.] column.
Click [OK]. Clicking [Cancel] cancels the setting.
Click [OK] on the setting complete screen.
