Remotely Monitoring Machine (Remote Monitor)

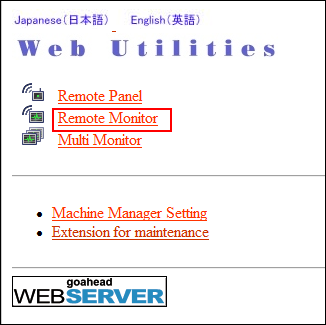

  1. Display the [Main page] screen of Web Utilities.

  2. Click on [Remote Monitor].

    The state of the machine, touch panel screen, and job condition are displayed on the web browser window.

  3. Clicking the touch panel screen on the Remote Monitor displays the Remote Panel in an exclusive window where you can operate the machine from the Computer.

    • According to the state of the machine, the background color of Remote Monitor varies as described in the table below.

    Background color

    State

    Green

    IDLING, WARMUP, ADJUSTMENT

    Blue

    OPERATING

    Yellow

    JAM

    Red

    SC
