Interface
To connect Color Centro to the image controller, use the Ethernet via a network connection.
It supports 1000 Base-T, 100 Base-TX, and 10 Base-T standards.

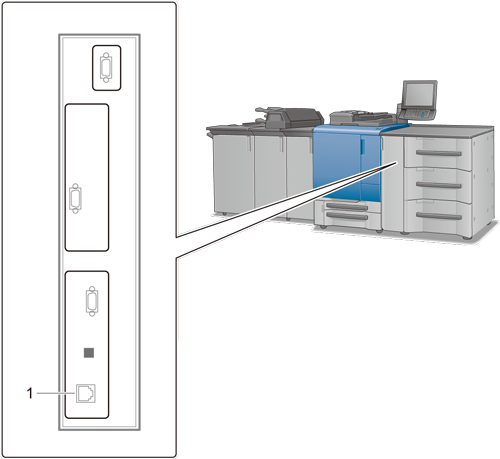

Connection diagram
Connect the network cable to the Ethernet port on this machine.
1. Ethernet port (1000 Base-T/100 Base-TX/10 Base-T)
