Copy Tone Curves

You can make a duplication of the tone curve in the image controller, to the image controller.

The tone curve registered at factory shipping in the image controller cannot be adjusted and overwritten. When you want to adjust the tone curve registered at factory shipping, load the duplication of it which was made beforehand and adjust the duplication.

1. From the tree view of [Tone Curve Management] screen, select [Controller].

   The list appears according to the selection.

   • For details about how to connect another controller, refer to Switching the Connection Destination.

2. From the list, select the tone curve to copy.

   • When you reload the information of the image controller connected currently, select [File] menu - [Reload].

3. Click [Copy].

   Displays the [Copy] screen.

   • When you select the multiple tone curves, [Copy] is not available.

   • When a folder other than [Controller] is selected on the tree view, [Copy] is not available.

   • Similar operation can be done when you select [File] menu - [Copy].

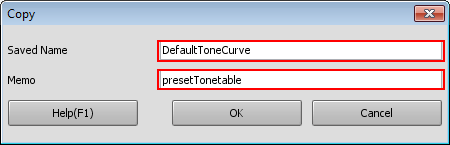

4. Enter [Saved Name] and [Memo].
   You can enter up to 31 one-byte characters (31 two-byte characters) to [Saved Name].
   You can enter up to 64 one-byte characters (32 two-byte characters) to [Memo].

   • You cannot specify the same name with those registered in the image controller.

5. Click [OK].

   The duplication of the tone curve is generated in the image controller.
