Register Tone Curves in the Image Controller

You can register the tone curve of [Local], [My Documents] or [Network] in [Controller]. When you register the tone curve to the image controller, the adjusted tone curve can be adopted to the output.

1. From tree view of [Tone Curve Management], select [Local], [My Documents] or [Network] where the tone curve profile (Extension: .xml) is saved.

   The list appears according to the selection.

2. From the list, select the tone curve to register.

3. Click [Register].

   [Register] screen appears.

   • When you select the multiple tone curve profiles, [Register] is not available.

   • When [Controller] is selected on the tree view, [Register] is not available.

   • Similar operation can be done when you select [File] menu - [Register].

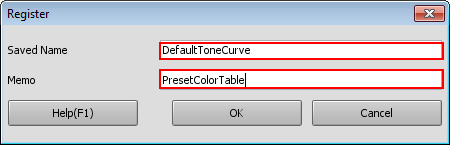

4. Enter [Saved Name] and [Memo].
   You can enter up to 31 one-byte characters (31 two-byte characters) to [Saved Name].
   You can enter up to 64 one-byte characters (32 two-byte characters) to [Memo].

   • You cannot specify the same name with those registered in the image controller.

5. Click [OK].

   The tone curve is registered to [Controller].

   [Register] screen is closed to return to [Tone Curve Management] screen.
