Change Information of Tone Curves

You can change the tone curve information (Saved Name, Memo).

1. From the tree view and the list of [Tone Curve Management] screen, select the tone curve to change the information.

   • For details about how to connect another controller, refer to Switching the Connection Destination.

   • When you reload the information of the image controller connected currently, select [File] menu - [Reload].

2. Click [Change Table Information].

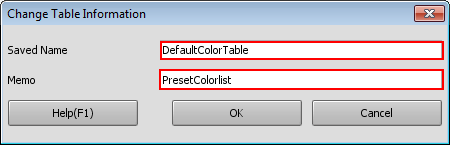

   The [Change Table Information] screen is displayed.

   • When you select the multiple tone curves, [Change Table Information] is not available.

   • Similar operation can be done when you select [File] menu - [Change Table Information].

3. If necessary, enter [Saved Name] and [Memo].
   You can enter up to 31 one-byte characters (31 two-byte characters) to [Saved Name].
   You can enter up to 64 one-byte characters (32 two-byte characters) to [Memo].

   • When you change the saved name of the tone curve in the image controller, you cannot specify the same name with those registered in the image controller.

4. Click [OK].

   The tone curve information is changed.
