Printer P: Specify a Measurement Data and Paper

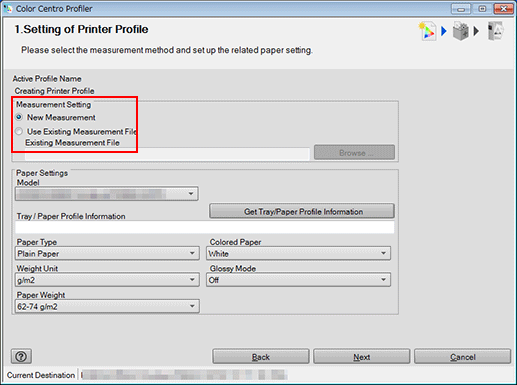

On the Select Measurement Method / Paper Setting screen, you can select the measurement method and set the related paper setting.

1. From [Measurement Setting], select [New Measurement] or [Use Existing Measurement File].


   • When you select [New Measurement], go to Step 5.

   • When you select [Use Existing Measurement File], go to Step 2.

2. Click [Browse].

   [Open] screen appears.

3. Select a file, and then click [Open].

   Windows: .tmd or .mcd

   Macintosh: .tmd

   The file name is displayed in [Existing Measurement File].

4. Click [Get Tray/Paper Profile Information].

   The [Get Paper Information] screen is displayed.

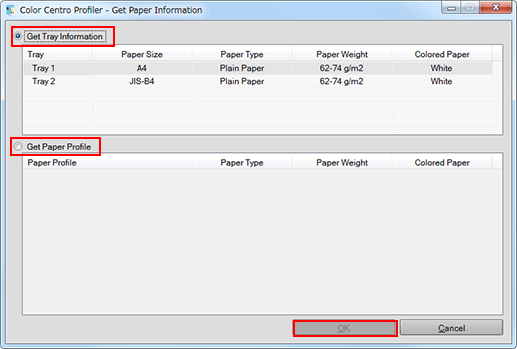

5. On [Get paper Information] screen, select [Get Tray Information] or [Get Paper Profile] and select the tray information or paper profile which you use then click [OK].

   Information is set.

6. Click [Next].

   • When you select [New Measurement] from [Measurement Setting], the Chart Measurement screen appears. In this case, go to Printer P: Measure a Chart.

   • When you select [Use Existing Measurement File] from [Measurement Setting], the UCR/GCR Setting screen appears. In this case, go to Printer P: Select a Level of UCR and GCR.
