RGB-CMYK DLP: Change the Information

You can change the information of the saved RGB-CMYK device link profile.

1. Click [RGB-CMYK Device Link Profile] on [Profile Management] screen.

   • You can also click the [File] menu - [Profile Type] - [RGB-CMYK Device Link Profile].

2. From the tree view and the list, select the RGB-CMYK device link profile to change the information.

   • For details about how to connect another controller, refer to Switching the Connection Destination.

   • When you reload the information of the image controller connected currently, select [File] menu - [Reload].

3. Click [Change Table Information].

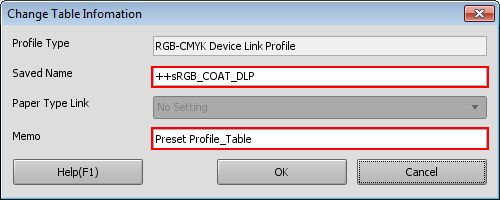

   The [Change Table Information] screen is displayed.

   • When you select the multiple RGB-CMYK device link profiles, [Change Table Information] is not available.

   • Similar operation can be done when you select [File] menu - [Change Table Information].

   • If the profile name is marked with an asterisk, you cannot change the profile's information.

4. If necessary, enter [Saved Name] and [Memo].
   Up to 31 one-byte characters can be entered to [Saved Name]. Up to 64 one-byte characters (32 two-byte characters) can be entered to [Memo].

   • But, you cannot change the table name of the RGB-CMYK device link profile which was registered at factory shipping.

5. Click [OK].

   The RGB-CMYK device link profile information is changed.
