CMYK-CMYK DLP: Copy from the Image Controller

You can make a duplication of the CMYK-CMYK device link profile in the image controller, to the image controller.

1. Click [CMYK-CMYK Device Link Profile] on [Profile Management] screen.

   • Similar operation can be done by selecting, on the [File] menu, [Profile Type] - [CMYK-CMYK Device Link Profile].

2. From the tree view, select [Controller].

   The list appears according to the selection.

   • For details about how to connect another controller, refer to Switching the Connection Destination.

3. From the list, select the CMYK-CMYK device link profile to copy.

   • When you reload the information of the image controller connected currently, select [File] menu - [Reload].

4. Click [Copy].

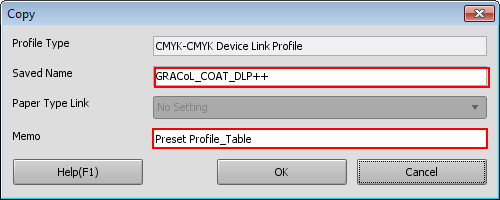

   Displays the [Copy] screen.

   • When you select the multiple CMYK-CMYK device link profiles, [Copy] is not available.

   • When a folder other than [Controller] is selected on the tree view, [Copy] is not available.

   • Similar operation can be done when you select [File] menu - [Copy].

5. Enter [Saved Name] and [Memo].
   Up to 31 one-byte characters can be entered to [Saved Name]. Up to 64 one-byte characters (32 two-byte characters) can be entered to [Memo].

   • You cannot save the CMYK-CMYK device link profile of the same name with those in the image controller.

6. Click [OK].

   The duplication of the CMYK-CMYK device link profile is generated in the image controller.
