CMYK-CMYK DLP (Editing): Start Color Centro Profiler

You can edit the CMYK-CMYK device link profile by using Color Centro Profiler.

1. Click [CMYK-CMYK Device Link Profile] on [Profile Management] screen.

   • Similar operation can be done by selecting, on the [File] menu, [Profile Type] - [CMYK-CMYK Device Link Profile].

2. From the tree view and the list, select the CMYK-CMYK device link profile to edit.

   • For details about how to connect another controller, refer to Switching the Connection Destination.

   • When you reload the information of the image controller connected currently, select [File] menu - [Reload].

3. Click [Edit].

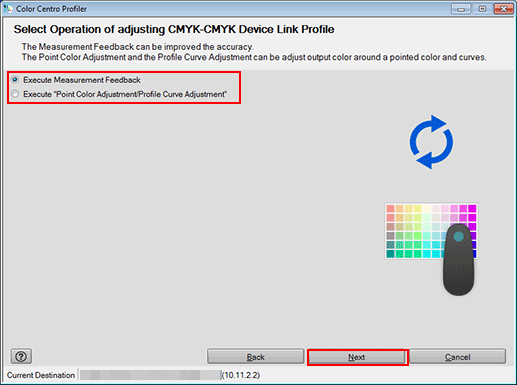

   Color Centro Profiler is launched as wizard and then Select Task screen appears.

4. [Execute Measurement Feedback] or [Execute "Point Color Adjustment/Profile Curve Adjustment"] and click [Next].

   The Confirmation of procedure screen appears.

   • If you choose "Execute Measurement Feedback", go to CMYK-CMYK DLP (Editing): Confirm the Procedure.

   • If you choose Execute "Point Color Adjustment/Profile Curve Adjustment," go to CMYK-CMYK DLP (Editing): Adjust a Point Color and a Profile Curve.
