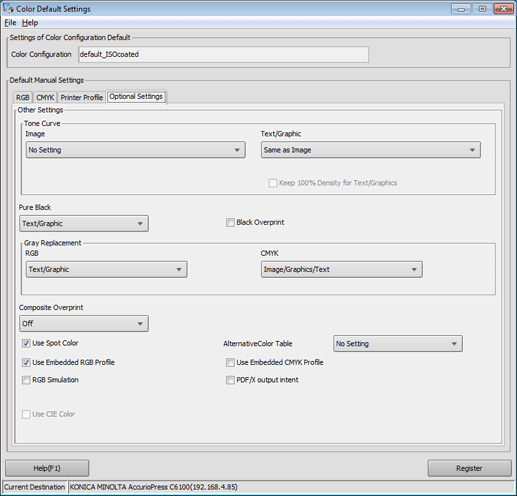

[Color Default Settings] Screen

[Color Configuration]

Displays the color configuration default of the image controller. For details, refer to Color Configuration Management.

[RGB] Tab

[Off]

Select this when the image controller doesn't execute the color conversion for the RGB data or uses the embedded RGB profile as default.

[RGB-CMYK Device Link Profile]

Select this when you use the RGB-CMYK device link profile as default. Set the RGB-CMYK device link profile for images, graphics, and text, respectively.

[RGB Source Profile]

Select this when you use the RGB source profile as default settings.

Allows you to set the RGB source profile to be used.

Select this when specifying a monitor profile in addition to standard color space (sRGB, etc.).

If you select this item, the following 2 items become available.
- [Rendering] which is displayed below this item
- [RGB Simulation] on the [Optional Settings] tab

The setting of this item is not applied, if you select [Use Embedded RGB Profile] on the [Optional Settings] tab.

[Rendering]

Select the default rendering setting for Image, Graphic, and Text respectively.

To select this item, select [RGB Source Profile] above this item ahead.

[CMYK] Tab

[Off]

Select this to use the embedded CMYK target profile as default.

[CMYK-CMYK Device Link Profile]

Select this when you use the CMYK-CMYK device link profile as default.

Set the CMYK-CMYK device link profile for images, graphics, and text, respectively.

[CMYK Target Profile]

Select this when you use the CMYK target profile as default.

Allows you to set the CMYK target profile to be used.

This setting is used when printing according to the printing standard (ISO Coated, etc.) or other printing machines.

Selecting this item enables you to set [Paper Simulation], which is displayed below this item.

The setting of this item is not applied, if you select [Use Embedded CMYK Profile] on the [Optional Settings] tab.

[Paper Simulation]

Check when you execute the Paper Simulation as default.

If you choose not to use Paper Simulation (Rendering: Relative), remove the check from the check box.

If you choose to use Paper Simulation (Rendering: Absolute), check this check box.

To select this item, select [CMYK Target Profile] above this item ahead.

[Printer Profile] Tab

[Printer Profile]

Specifies the default printer profile.

[Paper Type Link]

Allows you to set whether or not to enable the paper type link function as default settings. An appropriate profile is automatically selected according to the paper. [Paper Type Link] is combination data of a paper type and a printer profile. To specify a combination, use [Profile Management]. This is also available for a profile that is created by using a utility other than [Color Centro].

[Optional Settings] tab

[Tone Curve]

Selects the default tone curve setting.

Set the values for [Image] and [Text/Graphic].

[Keep 100% Density for Text/Graphics]

Select default of K100% output.

• Whether to output objects at the maximum density.

Target: Only objects whose input values are K100% (text, graphics)
K100%: RGB=(0,0,0) or CMYK=(0,0,0,100)

• This function prints black (not gray) in K only (100%).

• This function prints objects in pure black (K) not in rich black (CMYK).

• Even if you apply a tone curve whose maximum output value is less than 100%, this function keeps K100%.

• This function is not available on color machines.

[Pure Black]

Selects the default Pure Black settings.

• Whether to use Pure Black

• Target when used

Pure Black: A function that prints black (not gray) in K (100%).

Black is printed in pure black (K) instead of rich black (CMYK).

It applies to positions where RGB = (0,0,0) or CMYK = (0,0,0,100) is specified.

• Prevents excessive application of toner (overlaying four colors).

• Prevents toner from being used excessively.

• Reproduces K more stably than four-color K.

[Black Overprint]

Selects the default black overprint settings.

• Whether to use black overprint

Black overprint: A function that prints the underlying color over an object in K = 100%.

• As the underlying color is used, the K that is printed is not pure black.

• Prevents white space generated around an object.

If you choose not to use this function, the underlying color is removed before printing. (Knock-out processing)

[Gray Replacement]

Selects the default gray replacement settings.

• Whether to use gray replacement

• Target when used

Select the values for [RGB] and [CMYK] respectively.

Gray Replacement: A function that prints gray in K (1% to 99%).

It applies to positions where the R, G, and B values are equal or CMYK = (0,0,0,X) is specified

(where X is a value between 1 to 99).

• Stabilizes the quality of gray

(because it can be applied to all ranges including highlights and shadows, with the exception of solids).

[Composite Overprint]

Selects the default composite overprint settings.

• Whether to use composite overprint

• Priority target when used

Composite Overprint: A function of overprinting

• Prints by overlaying colors, not limited to K = 100%.

• Reproduces transparency (an overlay of colors) represented on an application that created the image.

If you choose not to use this function, the underlying color on objects is removed before printing. (Knock-out processing)

[Use Spot Color]

Selects the default spot color setting.

• Whether to use a spot color

[AlternativeColor Table]

Select an alternative color table to use.

[Use Embedded RGB Profile]

Selects the default setting of profile used in color conversion.

• Whether to use a profile that is embedded in an object in print data as the profile of RGB source

Required profile

When selected: Embedded profile

When not selected: Profile provided on the image controller

Select this option when you print by using a profile that you assign in an application.

Example: Adobe Photoshop

When no profile is embedded, the default profile is used.
To specify the default profile, use [Color Configuration Management].

[Use Embedded CMYK Profile]

Selects the default setting of profile used in color conversion.

• Whether to use a profile that is embedded in an object in print data as the CMYK target profile

Required profile

When selected: Embedded profile

When not selected: Profile provided on the image controller

Select this option when you print by using a profile that you assign in an application.

Example: Adobe Photoshop

When no profile is embedded, the default profile is used.
To specify the default profile, use [Color Configuration Management].

[RGB Simulation]

Selects the default RGB Simulation setting.

• Whether to perform RGB simulation

RGB Simulation: A function that simulates the conversion from RGB data to CMYK data in the CMYK color space when the data is converted.

With RGB data, this machine can achieve colors close to the printing standard.

To select this item, select [RGB Source Profile] in the [RGB] tab.

[PDF/X output intent]

Selects the default output intent setting of a PDF file.

• Whether to use a profile that is embedded in a PDF file as the CMYK target profile

PDF/X: ISO standard, which is used as print data.

Output intent: Profile specified in the color settings

Color conversion target

When selected: Embedded output intent

(If no output intent is embedded in the PDF file, the target is selected based on the CMYK color conversion settings. )

When not selected: CMYK profile

(Profile you select in Settings of Color Configuration Default or Default Manual Settings)

For a PDF file without PDF/X used, select [Use Embedded RGB Profile] or [Use Embedded CMYK Profile].

[Use CIE Color]

Select default of the color space to be used in color conversion.

• Whether to use the color space that the CIE color system configures

If you select this item, colors tend to become lighter.

Because of gradation changes, you may be able to reduce blocked up shadows.

To enhance the visibility, change the tone curve to the one that can output colors thicker.

CIE: CIE = Commission Internationale de l'Eclairage (International Commission on Illumination)

• This function is not available on color machines

[Register]

Register the settings in the image controller.

[Help]

Click to display the help.

[File]

[Return to Factory Default]

Returns the default setting to the factory default.

[Refresh]

Updates the information of the image controller connected currently.

[Color Verification]

Displays the [Color Verification] screen.

On this screen, you can configure items to be printed outside the image area.

You can check whether the image is printed correctly.

[Close]

Close this screen and exits this function.

[Help]

[Help]

Click to display the help.

[Version Information]

Displays the version of Color Centro.
