Home ScanSending by using Web Service (WS Scan)

Sending by using Web Service (WS Scan)

If the driver program of this machine is installed on a computer on the network, you can instruct a scan operation from the computer and receive the scan data on the computer.

This example describes how to scan originals from [Windows Fax and Scan].

  1. Open [Windows Fax and Scan].

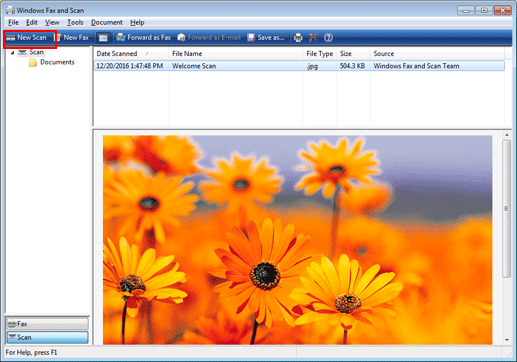

  2. Select [New Scan].

  3. Select this machine in the list, then click [OK].

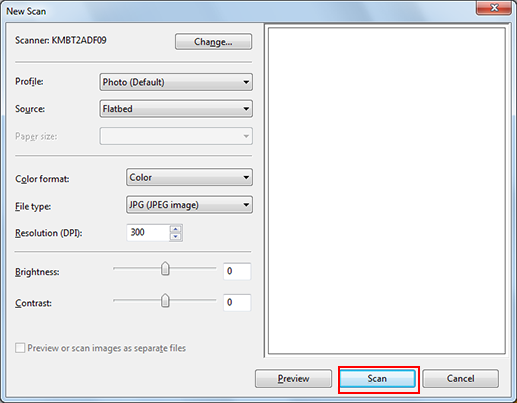

    The [New Scan] screen is displayed.

  4. Load the original on the machine.

  5. Configure scan settings and then click [Scan].

    • WS Scan can transmit a file only in JPEG and TIFF formats.

  6. In the [Tag these images] list, input the file name, and then click [Import]. The original is scanned and the scan data is added to the list of images.
