Direction: Setting Direction of Original

Specify the orientation of the original placed in the ADF or on the original glass. Without setting the orientation of the original positioned on the ADF or on the original glass, you may not obtain copy results as expected, especially when making copies under following conditions.

  • Copying from 2-sided originals

  • Making 2-sided copies

  • Combine

  • Booklet

  • Book Copy

  • Staple, etc.

Original Direction

Key

Description

Select for the original positioned with the head (top) toward the rear of the machine. Initially selected as factory default.

Select for the original positioned in the ADF with the head (top) toward the left side of the ADF.

Or, select for the original positioned on the original glass with the head (top) toward the left side of the original glass.

Select for the original positioned with the head (top) toward the front of the machine.

Select for the original positioned in ADF with the head (top) toward the right side of the ADF.

Or, select for the original positioned on the original glass with the head (top) toward the right side of the original glass.

  1. Position the original.

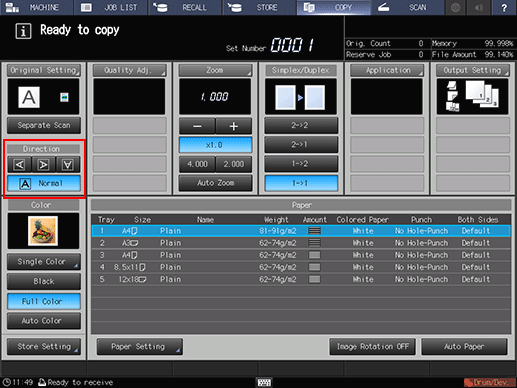

  2. Press the [COPY] tab to display the [COPY] screen.

  3. Select the desired original direction key from under [Direction].

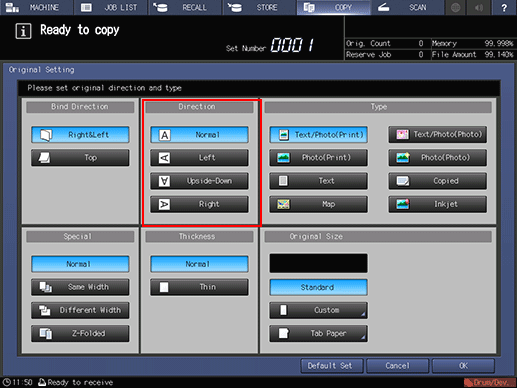

    • This setting is also available from the [Direction] area of the [Original Setting] screen. To display the [Original Setting] screen, press [Original Setting] on the [COPY] screen.

  4. Press [OK] to return to the [COPY] screen.

    • To restore the default setting, press [Default Set] and to restore the previous setting, press [Cancel].
