180 Deg. Rotation

Use this function to rotate the original by 180 degrees for printing. This function is available when printing on paper such as envelopes of which the orientation cannot be changed.

Original

Output

  1. Position the original.

  2. Press [Application] on the [COPY] screen.

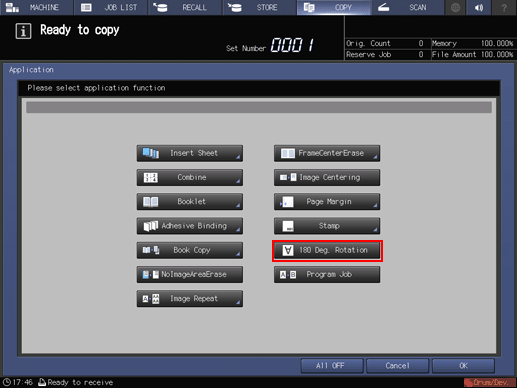

  3. Press [180 Deg. Rotation] on the [Application] screen.

  4. Press [OK] on the [Application] screen to return to the [COPY] screen.

    • The [180 Deg. Rotation] icon and shortcut key are displayed under [Application] on the [COPY] screen.

  5. Enter the desired print quantity from the keypad on the control panel.

  6. Press Start on the control panel.

    • Printing does not start without returning to the [COPY] screen. Be sure to display the [COPY] screen.
