Home CopyTri-Fold Print

Tri-Fold Print

The machine with Saddle Stitcher SD-506 mounted can fold a copied set inside in three. Using [Multi Tri-Fold], the print side can be specified. Finished sets are delivered to the multi tri-fold mode tray.

Original

Output

[Multi Tri-Fold] + [Outside Print]

[Multi Tri-Fold] + [Inside Print]

  1. Position the original.

  2. Press the [COPY] tab to display the [COPY] screen.

  3. Press [Output Setting].

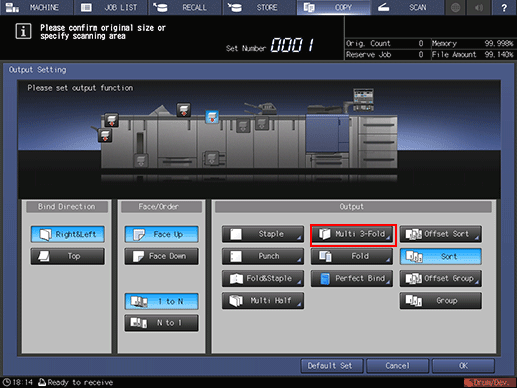

    The [Output Setting] screen is displayed.

  4. Press [Multi 3-Fold] under [Output].

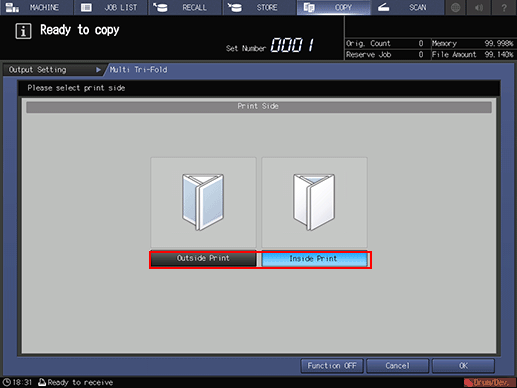

    The screen for selecting the print side is displayed.

  5. Press either [Outside Print] or [Inside Print].

  6. Press [OK].

    • To resume the previous setting, press [Cancel]. To cancel the function with the current setting saved, press [Function OFF].

  7. Press [OK] on the [Output Setting] screen.

    An icon representing specified output mode is displayed under [Output Setting] on the [COPY] screen.
