Creasing a Cover in Fold & Staple or Multi Half-Fold

When Saddle Stitcher SD-513 equipped with Creaser Unit CR-101 is mounted on the machine, one crease can be applied to a cover for paper folding in [Fold & Staple] or [Multi Half].

Menu item

Description

Illustration

[Fold & Staple]

Select [Crease] - [ON] on the [Fold & Staple] screen.

When [With Cover] is selected in combination with Booklet of the application function, one crease is applied only to a cover for Fold & Staple, and the cover is folded and stapled with the body. This function can be combined with the cut edge trimming function.

[Multi Half Fold]

Select [Crease] - [ON] on the [Multi Half Fold] setting screen.

When [With Cover] is selected in combination with Booklet of the application function, one crease is applied only to a cover for Multi Half Fold, and the cover is half-folded with the body. This function can be combined with the cut edge trimming function.

  • The paper processed in Fold & Staple or Multi Half Fold is output to the delivery tray. Set the delivery tray extension (tray) to make preparations for opening the Stopper. Otherwise, the output paper may drop from the delivery tray. Also, the full-load detection function may not work.

  • If [Fold & Staple] or [Multi Half] is selected, the body cannot be creased.

  • The crease position is fixed to the center.

  • The crease side cannot be selected.

  1. Position the original.

    • The number of original pages to be loaded is set to that for Fold & Staple or Multi Half Fold, and the number of folded sheets is determined. For information on the number of folded sheets, refer to Saddle Stitcher SD-513.

  2. Load the cover for Fold & Staple or Multi Half Fold into any tray.

    • The cover paper must be loaded into [Tray1] to [Tray5]. [PI1], [PI2], and [PB] cannot be set to a cover.

  3. Press the [COPY] tab to display the [COPY] screen.

  4. Press [Output Setting].

    The [Output Setting] screen is displayed.

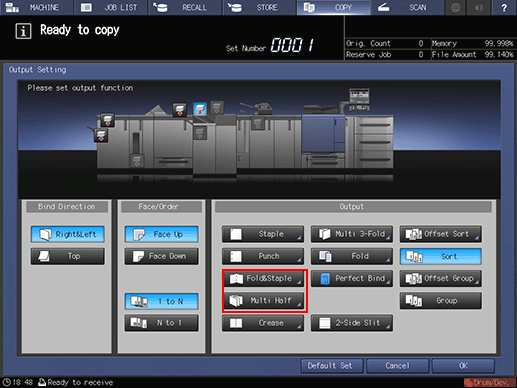

  5. Select either [Fold & Staple] or [Multi Half].

    This displays the Fold & Staple Setting or Multi Half Fold Setting screen.

  6. In [(1) Fore-edge Trimming], select [ON] or [OFF].

    • When [Fold & Staple] is selected in step 5, select [2 Positions] or [4 Positions] in [Staple], then also select [ON] or [OFF] in [(1) Fore-edge Trimming].

    • If [Multi Half] is selected in step 5, select [ON] or [OFF] in [(1) Fore-edge Trimming].

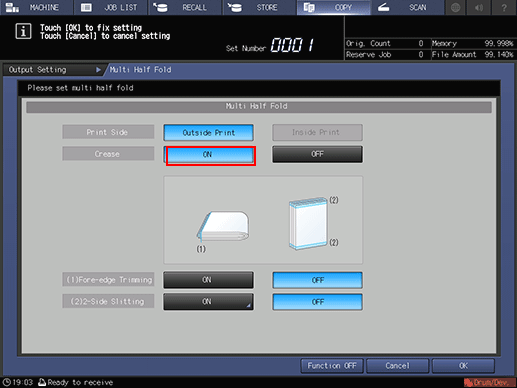

  7. Select [Crease] - [ON].

  8. Press [OK].

    • To undo the setting, press [Cancel].

    • To disable the function while keeping the current setting, press [Function OFF].

    This returns to the [Output Setting] screen.

    • [Fold & Staple] or [Multi Half] and [Crease] are highlighted. In this case, no crease setting can be configured even if [Crease] is pressed.

  9. Press [OK] on the [Output Setting] screen to return to the [COPY] screen.

    An icon representing specified function is displayed under [Output Setting] on the [COPY] screen.

    You also find that Booklet in Application is selected automatically.

  10. Press [Application], then press [Booklet].

  11. In [Cover Sheet], select [With Cover].

  12. From [Front Cover] and [Back Cover], select the tray you loaded a cover into in step 2.

    • When selecting the desired one from a tray paper, first select [With Cover (Print)] or [With Cover (Blank)].

  13. Press [OK].

    This returns to the [Booklet] screen.

  14. Select [Left Bind] or [Right Bind] in [Binding Position].

  15. Press [OK] to return to the [COPY] screen.

  16. Select additional copy conditions, as desired.

  17. Enter the desired print quantity using the keypad.

  18. Set the delivery tray extension (tray), then pull up the Stopper.

  19. Press Start on the control panel.
