Spine Corner Forming in Fold & Staple
When Saddle Stitcher SD-513 equipped with Folding Unit FD-504 is mounted on this machine, Spine Corner Forming can be combined with Fold & Staple.
Menu item | Description | Illustration |
|---|---|---|
[Fold & Staple] (+ [Fore-edge Trimming]) Select [Spine Corner Forming] - [ON] on the [Fold & Staple] Setting screen. | In [Spine Corner Forming Strength], select the desired one from [Strong+], [Strong], [Normal], [Weak], or [Weak+] |
|
The paper processed in Fold & Staple or Multi Half Fold is output to the delivery tray. Set the delivery tray extension (tray) to make preparations for opening the Stopper. Otherwise, the output paper may drop from the delivery tray. Also, the full-load detection function may not work.
Spine Corner Forming cannot be specified together with Crease.
The number of sheets processed by spine corner forming is the same as that processed by Fold and Staple. Check paper information before use. For details, refer to Paper Size Available for Use, Paper Weight Available for Use, Paper Capacity Available for Use.
The spine corner forming strength can be increased or decreased by adjustment. For details, refer to Flattening a Fold (Strength): Adjusting the Spine Corner Forming Strength.
Position the original.
The number of original pages to be loaded is set to that for Fold & Staple, and the number of folded and stapled sheets is determined. For information on the number of sheets folded in Fold & Staple, refer to Saddle Stitcher SD-513.
Load the cover for Fold & Staple into any tray.
The cover paper must be loaded into [Tray1] to [Tray5]. [PI1], [PI2], and [PB] cannot be set to a cover.
Press the [COPY] tab to display the [COPY] screen.
Press [Output Setting].
The [Output Setting] screen is displayed.

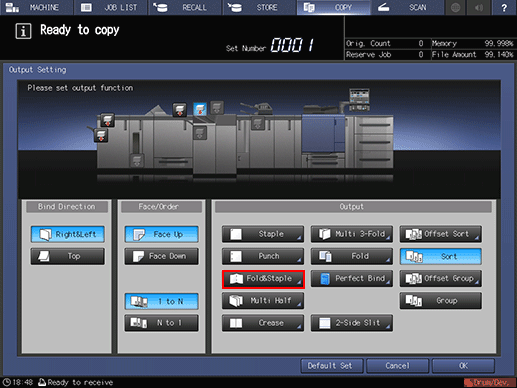

Select [Fold & Staple].
The [Fold & Staple] Setting screen is displayed.

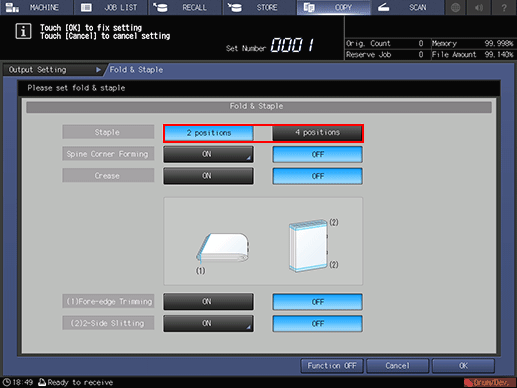

In [Staple], select [2 Positions] or [4 Positions].
In [(1) Fore-edge Trimming], select [ON] or [OFF].
When the saddle stitcher is equipped with Trimmer Unit TU-503, [(2) 2-Side Slitting] is available on the [Fold & Staple] Setting screen. For details, refer to 2-Side Slitting in Fold & Staple and Multi Half-Fold.
Select [Spine Corner Forming] - [ON].

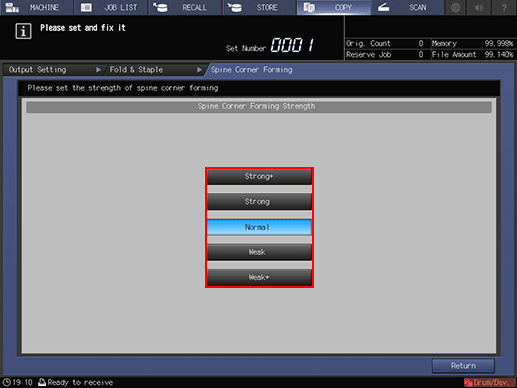

The [Spine Corner Forming Strength] setting screen is displayed.
Select the desired one from [Strong+], [Strong], [Normal], [Weak], and [Weak+].
Press [Return].
This returns to the [Fold & Staple] Setting screen.
Press [OK].
To undo the setting, press [Cancel].
To disable the function while keeping the current setting, press [Function OFF].
This returns to the [Output Setting] screen.
Press [OK] on the [Output Setting] screen to return to the [COPY] screen.
An icon representing specified function is displayed under [Output Setting] on the [COPY] screen.
You also find that [Booklet] in [Application] is selected automatically.

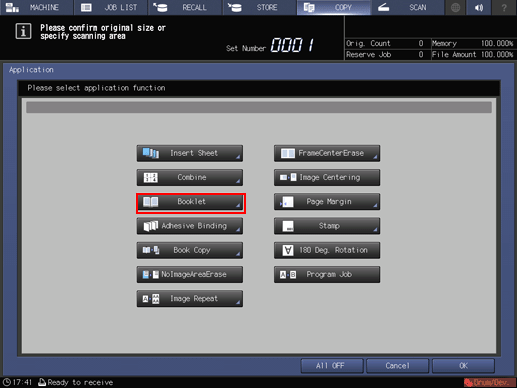

Press [Application], then press [Booklet].

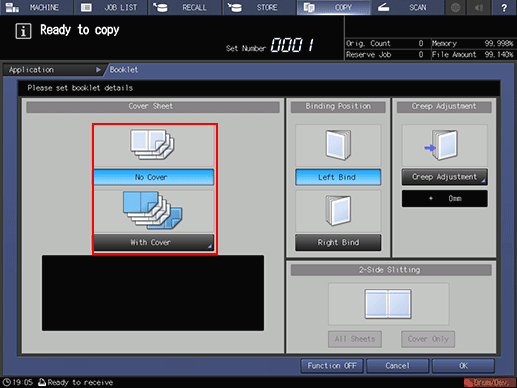

In [Cover Sheet], select [With Cover] or [No Cover].
From [Front Cover] and [Back Cover], select the tray you loaded a cover into in step 2.
When selecting the desired one from a tray paper, first select [With Cover (Print)] or [With Cover (Blank)].
Press [OK].
This returns to the [Booklet] screen.
Select [Left Bind] or [Right Bind] in [Binding Position].
Press [OK] to return to the [COPY] screen.
Select additional copy conditions, as desired.
Enter the desired print quantity using the keypad.
The number of copies that can be output to the delivery tray varies depending on the copy paper. The number of copies that can be output to the delivery tray for spine corner forming is the same as for Fold & Staple. For details, refer to Number of sheets that can be loaded and output.
Set the delivery tray extension (tray), then pull up the Stopper.
Press Start on the control panel.
