To Prevent Paper in the Stacker Tray from Collapsing

  1. Remove the paper stopper from the carriage.

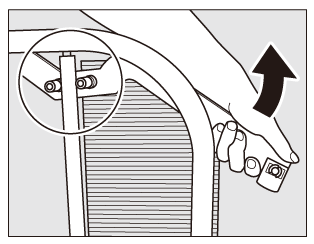

  2. Mount the paper stopper on the paper holder.

    • Fit the two projections of paper stopper to the paper holder, then raise the other side as illustrated.

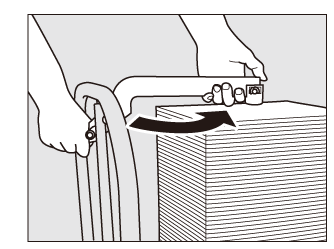

  3. Hold the paper using the paper stopper.

    • Turn the paper stopper to the paper.

    • Do not push it too strong. Otherwise, output sheets may be torn or wrinkled.

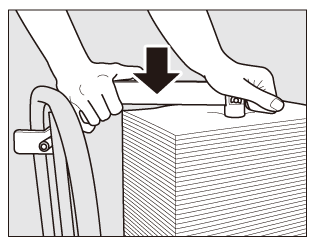

    • Push down the paper stopper.

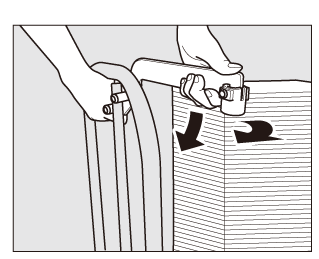

  4. Remove the paper stopper from the paper holder.

    • Pull up the paper stopper as illustrated, then turn it toward the handle of the carriage to remove the stopper from the paper holder.

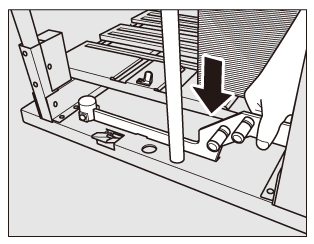

  5. Return the paper stopper to its original position.

    • Return the paper stopper properly. Otherwise, the large capacity stacker door may not be closed.
