Outputting to the Secondary (Sub) Tray
Output mode | Description |
|---|---|
[Sort] | Outputs multiple copies of the original set. Copies are stacked upon exit without being offset. |
[Group] | Groups together multiple copies of each original. Copies are stacked upon exit without being offset. |
Combined with the output modes above, you can also select the desired Face ([Face Up] or [Face Down]) and Order ([1 to N] or [N to 1]), as needed.
Position the original.
Press the [COPY] tab to display the [COPY] screen.
Press [Output Setting].

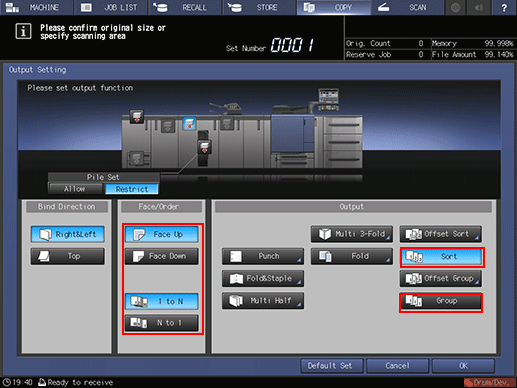

The [Output Setting] screen is displayed.
Select the secondary (sub) tray as output tray.
On the front image of the machine in the [Output Setting] screen, the tray currently selected is highlighted. If the secondary (sub) tray is not selected as an output tray, press the secondary (sub) tray position button
.
Select the desired output mode.
Select either [Sort] or [Group] provided under [Output].
Select the desired Face ([Face Up] or [Face Down]) and Order ([1 to N] or [N to 1]), as needed.
Selecting [N to 1] automatically sets and limits the Face mode to [Face Up].
Press [OK] on the [Output Setting] screen.
An icon representing specified function is displayed under [Output Setting] on the [COPY] screen.
Be careful not to exceed the secondary (sub) tray capacity, otherwise unexpected trouble may be caused.
