Creating Half-Fold Booklet

Finisher FS-532 mounted with Saddle Stitcher SD-510 allows the machine to fold paper and create a multiple page signature booklet folded and stapled at two positions (saddle stitched) in the center, using Booklet in combination.

Original

Output

[Fold & Staple]

[Multi Half Fold]

Item

Description

Paper size

A3 , B4 , A4 , 12 18 , 11 17 , 8.5 14 , 8.5 11 ), Custom (Widthwise 120 mm to 331 mm, Lengthwise 240 mm to 488 mm / Widthwise 4.72" to 13.03", Lengthwise 9.45" to 19.21")

Paper weight

Body set: 50 g/m2 to 216 g/m2 / 13 lb Bond to 57 lb Bond, Cover paper: 50 g/m2 to 300 g/m2 / 13 lb Bond to 81 lb Bond

Max. number of sheets

Multi Half-Fold: 5 sheets (50 g/m2 to 216 g/m2 / 13 lb Bond to 57 lb Bond), 1 sheet (217 g/m2 to 300 g/m2 / 58 lb Bond to 81 lb Bond)

Fold & Staple: 25 sheets (50 g/m2 to 61 g/m2 / 13 lb Bond to 16 lb Bond), 20 sheets (62 g/m2 to 80 g/m2 / 16 lb Bond to 21 lb Bond), 16 sheets (81 g/m2 to 91 g/m2 / 22 lb Bond to 24 lb Bond), 5 sheets (92 g/m2 to 216 g/m2 / 25 lb to 57 lb Bond)

Output Tray

Folder tray

Tray capacity

35 sets (1 to 5-sheet-folded in Multi Half-Fold)

35 sets (2 to 5-sheet-folded and stapled in Fold&Staple)

25 sets (6 to 10-sheet-folded and stapled in Fold&Staple)

15 sets (11 to 25-sheet-folded and stapled in Fold&Staple)

  • [Booklet] in [Application] is automatically set.

  • [Auto Zoom] is automatically set. [Auto Paper] cannot be used in combination.

  • Select [1->2] or [2->2] copy mode.

  • Open the paper delivery handle of the folder tray before operating an output using [Fold & Staple] or [Multi Half-Fold] mode. Use the paper delivery handle when taking out the output sheets.

  1. Position the original.

  2. Press the [COPY] tab to display the [COPY] screen.

  3. Press [Output Setting].

    The [Output Setting] screen is displayed.

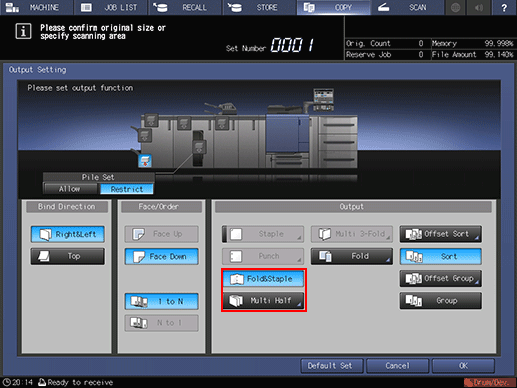

  4. Select [Fold&Staple] or [Multi Half] under [Output].

    The front image of the machine provided on the [Output Setting] screen shows that the folder tray is currently selected as an output tray.

  5. Press [OK] on the [Output Setting] screen.

    The screen returns to the [COPY] screen.

    An icon representing specified output mode is displayed under [Output Setting] on the [COPY] screen.

  6. Open the paper delivery handle of the folder tray.
