Tri-Fold Print

Finisher FS-532 mounted with Saddle Stitcher SD-510 allows the machine to copy on 8.5 11 or A4 paper and tri-fold prints can be made. When selecting Tri-Fold, also select either inside or outside to have the printed image.

Original

Output

[Multi Tri-Fold] + [Outside Print]

[Multi Tri-Fold] + [Inside Print]

Item

Description

Max. number of sheets

1 sheet (92 g/m2 to 105 g/m2 / 25 lb Bond to 28 lb Bond), 3 sheets (50 g/m2 to 91 g/m2 / 13 lb Bond to 24 lb Bond)

Paper size

A4 , 8.5 11

Print side

Inside, outside

Output Tray

Folder tray

Tray capacity

50 sets (1-sheet-folded set)

40 sets (2-sheet-folded set)

30 sets (3-sheet-folded set)

  • Selecting [Inside Print] automatically sets the printing order to N to 1, and selecting [Outside Print] to 1 to N.

  • As for the Face mode, [Face Up] is automatically selected in combination with [Inside Print], and [Face Down] in combination with [Outside Print].

  • Open the paper delivery handle of the folder tray before operating an output using [Multi Tri-Fold] mode. Use the paper delivery handle when taking out the output sheets.

  1. Position the original.

  2. Press the [COPY] tab to display the [COPY] screen.

  3. Press [Output Setting].

    The [Output Setting] screen is displayed.

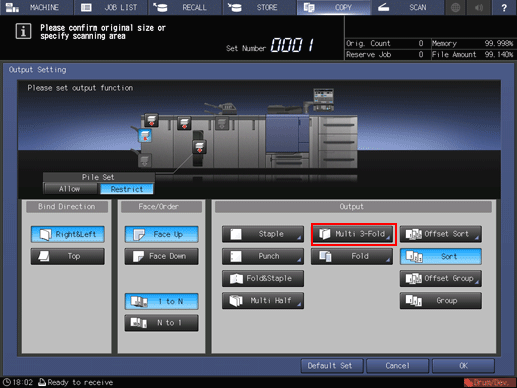

  4. Press [Multi 3-Fold] under [Output].

    The [Multi Tri-Fold] screen is displayed.

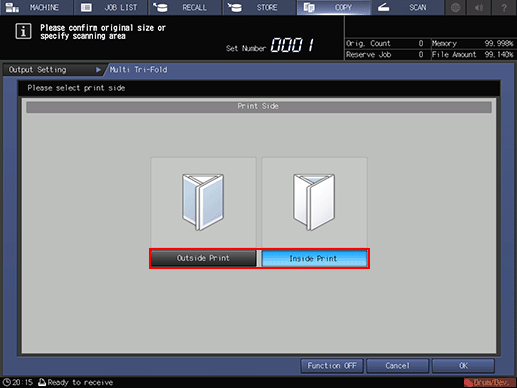

  5. Select either [Outside Print] or [Inside Print].

  6. Press [OK].

    • To resume the previous setting, press [Cancel]. To cancel the function with the current setting saved, press [Function OFF].

    The screen returns to the [Output Setting] screen.

    The front image of the machine provided on the [Output Setting] screen shows that the folder tray is currently selected as an output tray.

  7. Press [OK].

    An icon representing specified output mode is displayed under [Output Setting] on the [COPY] screen.

  8. Open the paper delivery handle of the folder tray.
