Tri-Fold Print
A machine mounted with Finisher FS-612 can copy on 8.5
11
or A4 paper, and then fold it inside in three. When selecting Tri-Fold, also select either inside or outside to have the printed image.
Original | Output | |
| [Tri-Fold] + [Outside Print] | [Tri-Fold] + [Inside Print] |
Item | Description |
|---|---|
Folding capacity (weight) | 1 sheet (62 g/m2 to 105 g/m2 / 16 lb Bond to 28 lb Bond) |
Paper size | A4 |
Print side | Inside, outside |
Output Tray | Fold/Staple mode tray |
Tray capacity | 50 sets (1-sheet-folded in Tri-Fold) |
Selecting [Inside Print] automatically sets the printing order to [N to 1], and selecting [Outside Print] to [1 to N].
As for the Face mode, [Face Up] is automatically selected in combination with [Inside Print], and [Face Down] in combination with [Outside Print].
Position the original.
Press the [COPY] tab to display the [COPY] screen.
Press [Output Setting].

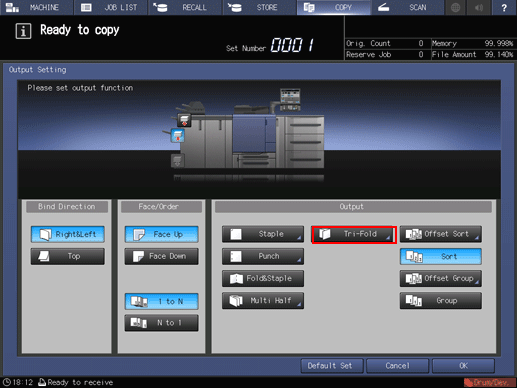

The [Output Setting] screen is displayed.
Press [Tri-Fold] under [Output].

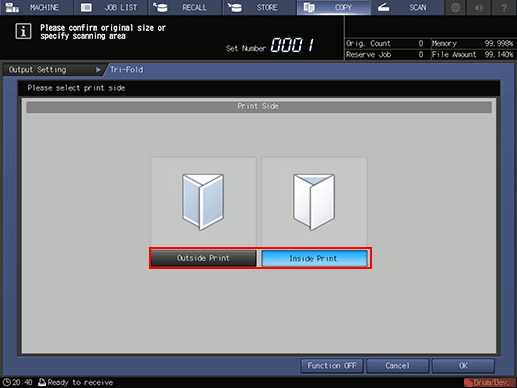

The [Tri-Fold Setting] screen is displayed.
Select either [Outside Print] or [Inside Print].
Press [OK].
To resume the previous setting, press [Cancel]. To cancel the function with the current setting saved, press [Function OFF].
The screen returns to the [Output Setting] screen.
The front image of the machine provided on the [Output Setting] screen shows that the fold/staple mode tray is currently selected as an output tray.
Press [OK].
An icon representing specified output mode is displayed under [Output Setting] on the [COPY] screen.
