Displaying Output History

The [Output Hist.] screen of the [JOB LIST] screen provides a listing of output history.

Details of each job can be checked on the [Ticket Details] screen.

Up to 100 jobs are displayed in [Output Hist.], [Send History], and [Incomp. Hist.] in total. When Image Controller IC-603 is mounted on the machine, jobs are retained even if the machine is turned off.

No.

Name

Description

1

[Output Hist.]

Press to display the [Output Hist.] screen.

2

[File Name]

Displays the file name when applied. The file name can be hidden (indicated by asterisks (*)). For details, contact your service representative.

3

[User Name]

Displays the user name when registered.

4

[Result]

Displays the output result such as Complete or Cancel.

5

[Pages]

Displays up to 5 digits of page count.

6

[Sets]

Displays up to 4 digits of set count.

7

[Time]

Displays the output time in 24-hour format.

8

[Orig.Count]

Displays the number of originals of a job.

9

[Details]

Pressed for a job to be checked in detail after you select it from the list. The [Ticket Details] screen for the selected job is displayed.

10

Scroll keys

Used to scroll the list of output history. The current page number and total page count of the list are displayed between the keys.

  • How to check

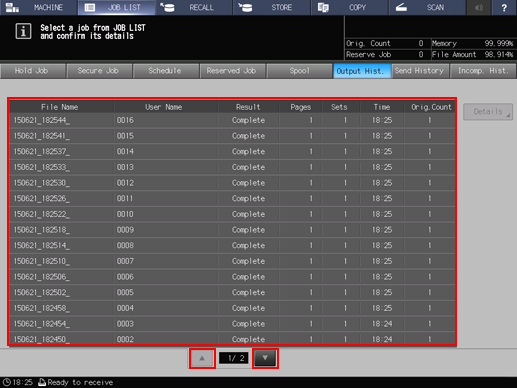

  1. Press the [JOB LIST] tab to display the [JOB LIST] screen and then press [Output Hist.].

  2. Check the status of output jobs in the list of the screen.

    If 16 or more jobs exist, press [] or [].

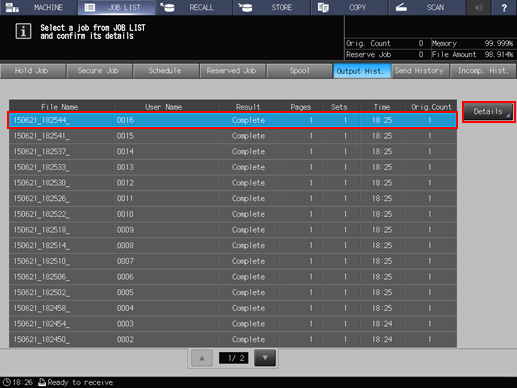

  3. Press and highlight a job that you want to check it, then press [Details].

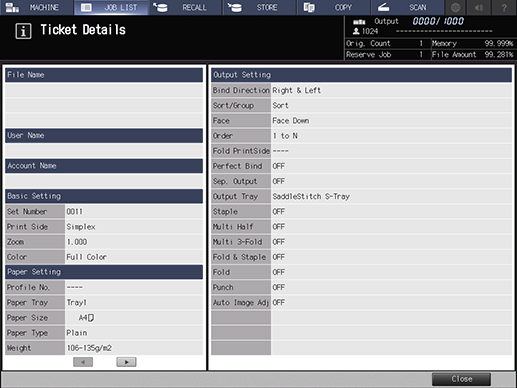

  4. Check the details on the [Ticket Details] screen.

  5. After checking the details, press [Close].
