Checking Send History

The [Send History] screen of the [JOB LIST] screen provides a listing of send history.

Details of each job can be checked on the [Ticket Details] screen.

Up to 100 jobs are displayed in [Output Hist.], [Send History], and [Incomp. Hist.] in total. When Image Controller IC-603 is mounted on the machine, jobs are retained even if the machine is turned off.

No.

Name

Description

1

[Send History]

Press to display the [Send History] screen.

2

[File Name]

Displays the file name when applied.

3

[User Name]

Displays the user name when registered.

4

[Address]

Displays the destination address.

5

[Result]

Displays the transmission result such as Complete or Cancel.

6

[Time]

Displays the time of transmission in 24-hour format.

7

[Mode]

Displays the mode (E-mail/HDD/FTP/SMB/WebDAV/Queue*1/USB*2/TWAIN) of the send job.

When selecting multiple destinations, only one destination is displayed. (The order of priority is: E-mail - HDD - FTP - SMB - WebDAV - Queue*1 - USB*2 - TWAIN)

*1: Displays only when Image Controller IC-313, Image Controller IC-314, or Image Controller IC-417 is mounted.
*2: Displays only when Image Controller IC-603 is mounted.

8

[Details]

Pressed for a job to be checked in detail after you select it from the list. The [Ticket Details] screen for the selected job is displayed.

9

Scroll keys

Used to scroll the list of send history. The total page count and current page number of the send history list are displayed between the keys.

  • How to check

  1. Press [JOB LIST], then press [Send History].

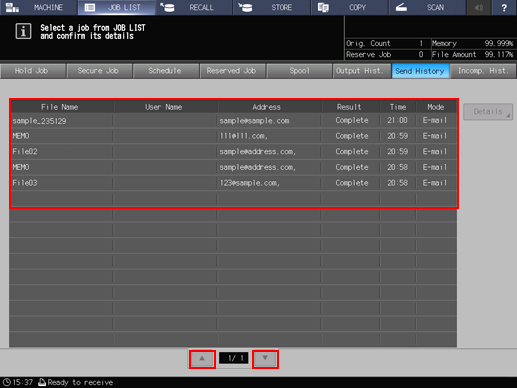

  2. Check the status of jobs sent in the list of the screen.

    If 16 or more jobs exist, press [] or [].

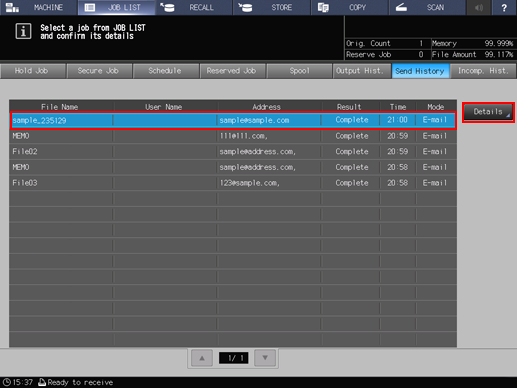

  3. Press and highlight a job that you want to check it, then press [Details].

  4. Check the details on the [Ticket Details] screen.

  5. After checking the details, press [Close].
