[Job Ticket Edit] Screen

This section describes an outline of the operation of the [Job Ticket Edit] screen. Edit a job by operating in combination with the [Image Page Edit] screen.

  • If images with different type of job (copy/print) or the controller image compression setting (priority on gradation/priority on resolution) are attached on the image data in the [Image Page Edit] screen, you cannot select [Booklet], [Adhesive Bind] or [Combine] of [Application Setting] cannot be selected in the [Job Ticket Edit] screen.

  • The description of Register Crop Mark is provided in another section. Refer to Specifying Crop Mark for details.

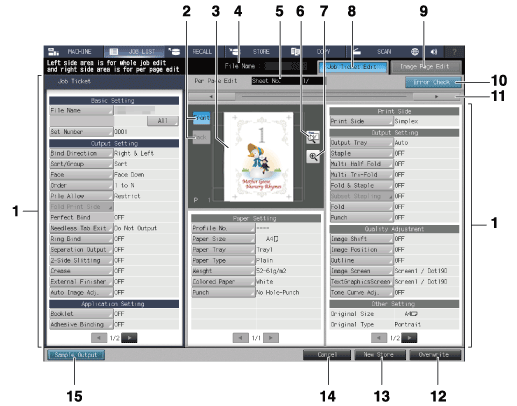

No.

Name

Description

1

Image sheet setting items and set contents

Displays setting items and set contents of the preview image data. Press the key available for selection to change the setting. Use [] and [] at the bottom of each area to scroll the items and contents.

2

[Front], [Back]

Press to preview the front and back side of a 2-sided original.

3

Preview image display

Displays the preview image of the file selected on the [Hold Job] screen or [Secure Job] screen.

4

File Name display

Displays the name of the file selected on the [Hold Job] screen or [Secure Job] screen.

5

Sheet No. display

Displays the total sheet count of the file selected on the [Hold Job] screen or [Secure Job] screen, and also the sheet count of the preview images.

6

Rotation/Output direction key

Pressed to rotate the preview image, or to check the output direction of the image.

7

Enlarged preview key

Press to enlarge a preview image. On the enlarged preview screen, you can set a crop mark or the Image Shift function.

8

[Job Ticket Edit] tab

Press to display the [Job Ticket Edit] screen.

9

[Image Page Edit] tab

Press to display the [Image Page Edit] screen.

10

[Error Check]

Turns orange if a setting that is unavailable for output is detected. Press this key to display the cause.

11

[][]

Pressed to scroll the preview image.

12

[Overwrite]

Overwrites to save the setting changes along with the image data.

13

[New Store]

Newly stores the setting changes along with the image data.

14

[Cancel]

Press to not save the setting changes.

15

[Sample Output]

Press this button to output and check the changed setting. One set, a sheet in the preview, or a sheet can be specified as an output target.

Items that can be set in the [Job Ticket Edit] screen

Item

Setting

Left hand of the screen

[Basic Settings]

- [File Name]
- [Set Number]

[Output Setting]

- [Bind Direction]
- [Sort/Group]
- [Face]
- [Order]
- [Pile Allow]
- [Fold Print Side]
- [Perfect Bind]*1
- [Needless Tab Exit]
- [Ring Bind]
- [Separation Output]
- [2-Side Slitting]
- [Crease]
- [External Finisher]
- [Auto Image Adj.]*2

*1: Valid only when the Perfect Bind is set to the hold job.
*2: Available only for hold jobs from Image Controller IC-603.

[Application Setting]

- [Booklet]
- [Adhesive Binding]
- [Combine]
- [Image Repeat]
- [Page Margin]
- [Register Crop Mark]
- [180 Deg. Rotation]
- [Image Centering]
- [Stamp Numbering]
- [Stamp Page No.]
- [Stamp Date/Time]

[Other Setting]

The following items cannot be changed.
- [Book Copy]
- [No Image Area Erase]
- [Frame Erase]
- [Annotation]
- [Full Image Area]
- [Copy Density]
- [Background Removal]
- [Color Adj. (R/G/B)]
- [Hue]
- [Saturation]
- [Brightness]
- [Sharpness]
- [Contrast]
- [Distinction(Text)]
- [Distinction (Color)]
- [Color Balance]

Center of the screen

[Paper Setting]

- [Profile No.]
- [Paper Size]
- [Paper Tray]
- [Auto Tray Target] (when Paper Tray is set to [Auto])
- [Paper Type]
- [Weight]
- [Colored Paper]
- [Punch]

Right hand of the screen

[Print Side]

Simplex/Duplex can be set.

[Output Setting]

- [Output Tray]
- [Staple]
- [Multi Half Fold]
- [Multi Tri-Fold]
- [Fold & Staple]
- [Subset Stapling]
- [Fold]
- [Punch]

[Quality Adjustment]

- [Image Shift]
- [Image Position]
- [Outline] *
- [Image Screen] *
- [Text/Graphics Screen] *
- [Glossy]
- [Tone Curve Adj.]

*: Only valid for a print job.

[Other Setting]

The following items cannot be changed.
- [Original Size]
- [Original Type]
- [Original Side]
- [Zoom]
- [Resolution]
- [Color]

[Color Sheets in One Set]

The page number of color or black-and-white in the job is displayed. The following items cannot be changed.
- [Full Color]
- [Single Color]
- [Black]
