Interfaces used for connection

The following types of interfaces are available:

Ethernet

This is used for a computer with network connection.
It supports 1000 Base-T, 100 Base-TX, and 10 Base-T standards. In addition, TCP/IP (LPD/LPR, IPP, SMB), Web services, IPX/SPX (NetWare), Bonjour protocols are supported.

USB interface

This is used for a computer with USB connection. The USB interface can be connected to a computer running Windows. A USB cable is required for connection. Use a type A (4 pin, male) or type B (4 pin, male) USB cable. A USB cable measuring three meters or less is recommended.

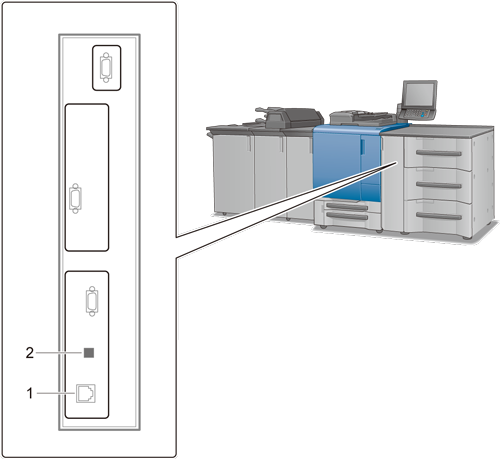

Connection diagram

The printer cables are connected to each port of the image controller.

Back side of this machine

1. Ethernet port (1000 Base-T/100 Base-TX/10 Base-T)
2. USB port
