CD-Mag. Adjustment: Adjusting the Magnification in Crosswise Direction in the Printer

Adjust the magnification in crosswise direction in the printer engine.

Objects of adjustment: Printer CD-Mag., Tray 1 Offset (ADU) to Tray 5 Offset (ADU), Bypass Offset (ADU)

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

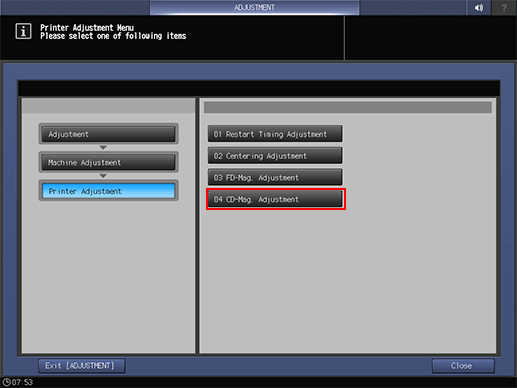

  2. Press [Machine Adjustment], [Printer Adjustment], and [CD-Mag. Adjustment] in sequence.

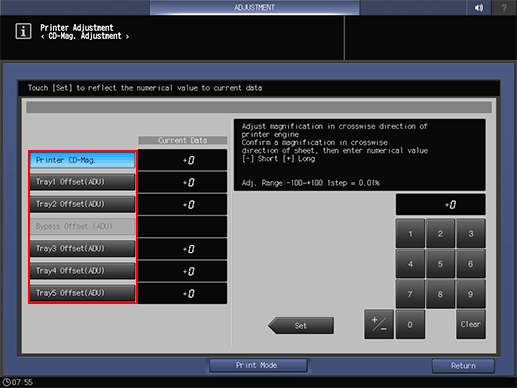

  3. Press the key of the object to be adjusted.

  4. Press [Print Mode].

  5. Load A3 paper or 11 17 paper into the tray to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

    • On the front side of the chart, mark will be printed so that you can tell which tray is used to print the chart. For details, refer to Chart.

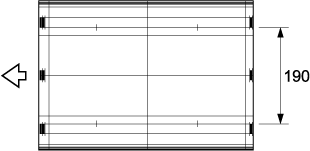

  7. Measure the resultant magnification in the direction perpendicular to the paper feed direction.

    Allowance: ± 0.5% or less

    Within 190 mm ± 1 mm

  8. If any adjustment is required, press [Exit PrintMode] to return to the [CD-Mag. Adjustment] screen.

  9. Use the touch panel keypad or the keypad on the control panel to enter the setting data.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the Current Value.

    • Adjustment Range: -100 ([Short]) to +100 ([Long]) (1 step = 0.01%)

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press [Return].

    The screen returns to the [Printer Adjustment Menu] screen.
