Centering Adjustment: Adjusting the Image Position in the Crosswise Direction When Scanning Originals

Adjust the image position in the crosswise direction when scanning the original from the original glass.

Objects of Adjustment: Orig. Glass Centering

  • Make this adjustment after completing [Machine Adjustment] - [Printer Adjustment] - [Centering Adjustment].

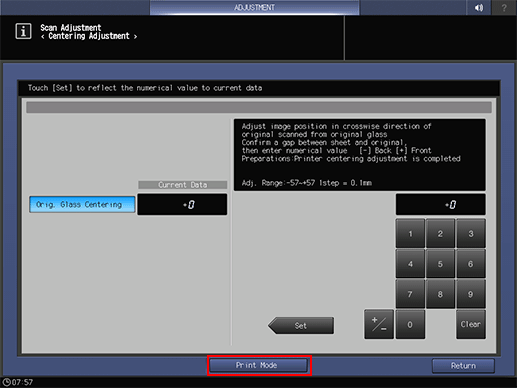

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

  2. Press [Machine Adjustment], [Scan Adjustment], and [Centering Adjustment] in sequence.

  3. Press [Print Mode].

  4. Load A3 paper or 11 17 paper, then select that tray.

  5. Position the test chart on the original glass according to the selected object.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Check the misalignment by comparing the original and the output.

    Allowance: within 0 mm ± 1.5 mm

  8. If any adjustment is required, press [Exit PrintMode] to return to the [Centering Adjustment] screen.

  9. Use the touch panel keypad or the keypad on the control panel to enter the setting data.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the current value.

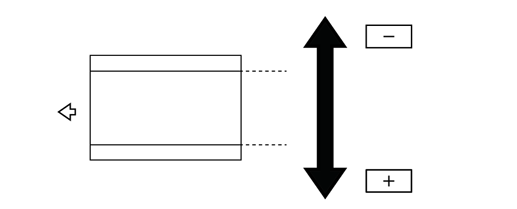

    • Adjustment Range: -57 ([Back]) to +57 ([Front]) (1 step = 0.1 mm)

  10. Repeat steps 3 to 9 until the desired result is obtained.

  11. Press [Return].

    The screen returns to the [Scan Adjustment Menu] screen.
