FD-Mag. Adjustment: Adjusting FD-Mag. When Scanning Originals

Adjust the magnification in paper feed direction when scanning the original from the original glass.

  • Make this adjustment after completing [Machine Adjustment] - [Printer Adjustment] - [FD-Mag. Adjustment].

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

  2. Press [Machine Adjustment], [Scan Adjustment], and [FD-Mag. Adjustment] in sequence.

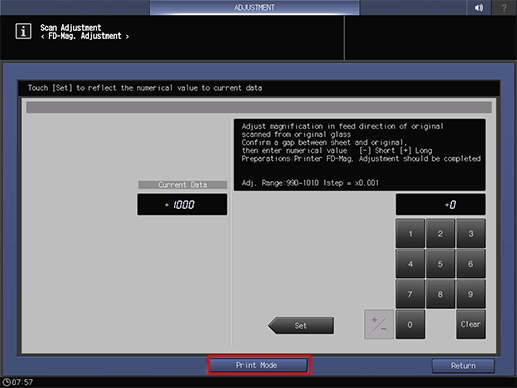

  3. Press [Print Mode].

  4. Load A3 paper or 11 17 paper, then select that tray.

  5. Position the test chart on the original glass, then press Start on the control panel.

    A sample pattern will be output.

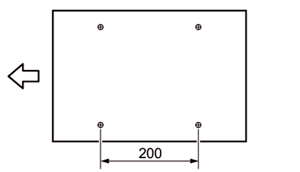

  6. Check the misalignment by comparing the original and the output.

    Allowance:
    0 ± 0.5% or less (full size)

    Within 200 mm ± 1 mm

  7. If any adjustment is required, press [Exit PrintMode] to return to the [FD-Mag. Adjustment] screen.

  8. Use the touch panel keypad or the keypad on the control panel to enter the setting data.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the current value.

    • Adjustment Range: 990 ([Short]) to 1010 ([Long]) (1 step = x 0.001)

  9. Repeat steps 3 to 8 until the desired result is obtained.

  10. Press [Return].

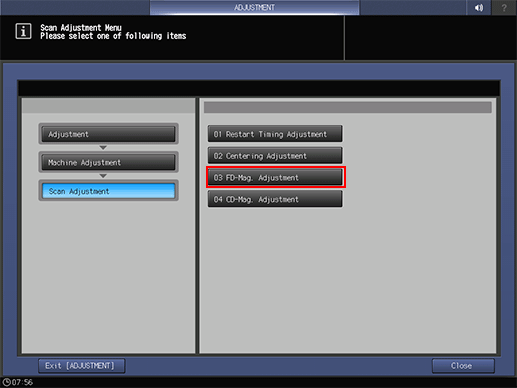

    The screen returns to the [Scan Adjustment Menu] screen.
