CD-Mag. Adjustment: Adjusting the CD-Magnification When Scanning Originals

Adjust the magnification in crosswise direction when scanning the original from the original glass.

  • Make this adjustment after completing [Machine Adjustment] - [Printer Adjustment] - [CD-Mag. Adjustment].

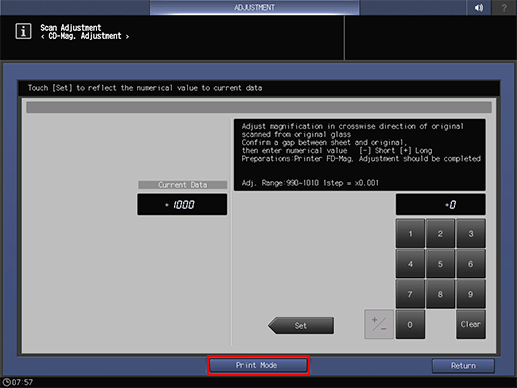

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

  2. Press [Machine Adjustment], [Scan Adjustment], and [CD-Mag. Adjustment] in sequence.

  3. Press [Print Mode].

  4. Load A3 paper or 11 17 paper, then select that tray.

  5. Position the test chart on the original glass, then press Start on the control panel.

    A sample pattern will be output.

  6. Check the misalignment by comparing the original and the output.

    Measure the error of the width A on the chart and the width A on the test print.

    Allowance: Within ± 1 mm

  7. If any adjustment is required, press [Exit PrintMode] to return to the [CD-Mag. Adjustment] screen.

  8. Use the touch panel keypad or the keypad on the control panel to enter the setting data.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the current value.

    • Adjustment Range: 990 ([Short]) to 1010 ([Long]) (1 step = 0.001)

  9. Repeat steps 3 to 8 until the desired result is obtained.

  10. Press [Return].

    The screen returns to the [Scan Adjustment Menu] screen.
