Fold&Staple Paper Width Adj.: Adjusting the Width of the Adjustment Plates in the Saddle Stitcher
Adjust pitch of alignment plate for misalignment in the crosswise direction in the half-fold or multi tri-fold paper in Saddle Stitcher SD-510 mounted on Finisher FS-532.
Objects of Adjustment:
Offset for All Size, SRA3
, 12
18 , A3 , 11 17 , 8K , B4 , SRA4 , 8.5 14 , 8.5 11 , B5 , A4 , 16K , 8 13 , 13 19 , Custom (380 to 488 mm), Custom (240 to 379 mm)
If a numeric value is specified for [Offset for All Size], it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for [Offset for All Size].
Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

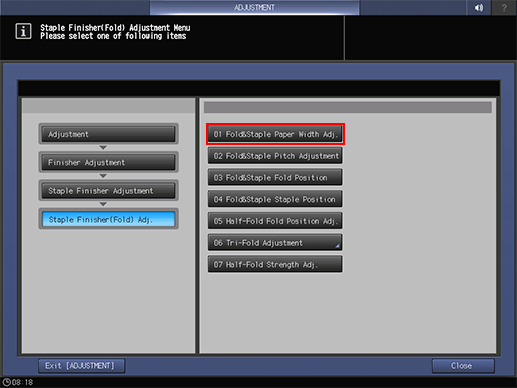

Press [Finisher Adjustment], [Staple Finisher Adjustment], [Staple Finisher(Fold) Adj.], [Fold&Staple Paper Width Adj.] in sequence.
Select the size to be adjusted using [
] or [
].
Press [Print Mode].
Load the paper size selected in step 3, then select that tray key.
For [Output Setting], [Fold & Staple] is automatically selected.
Press Start on the control panel.
A sample pattern will be output.

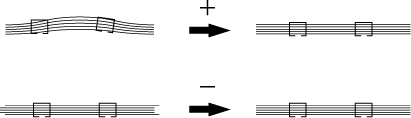

Check if the set of paper shows misalignment (a), or is curved (b).
a: This is caused if the specified paper width is larger than the actual width.
b: This is caused if the specified paper width is smaller than the actual width.
Allowance: a = 1.0 mm or less
Press [Exit PrintMode] to return to the [Fold&Staple Paper Width Adjustment] screen.
If any adjustment is required, use the touch panel keypad to enter the set value.
Adjustment Range: -50 ([Narrow]) to +50 ([Wide]) (1 step = 0.1 mm)
Press [+/-] to specify the value to be positive or negative.
Press [Set] to change the setting with the Current Data.
Repeat steps 4 to 10 until the desired result is obtained.
Press [Return].
The screen returns to the [Staple Finisher(Fold) Adjustment Menu] screen.
