Half-Fold Strength Adj.: Making Roller Pressure Time Longer

Adjust roller pressure time to folding point of booklet with fold & staple or multi half-fold in Saddle Stitcher SD-510 mounted on Finisher FS-532. Input value represents the number of second. Making the roller pressure time longer increases strength to fold booklets, yet decreases productivity.

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

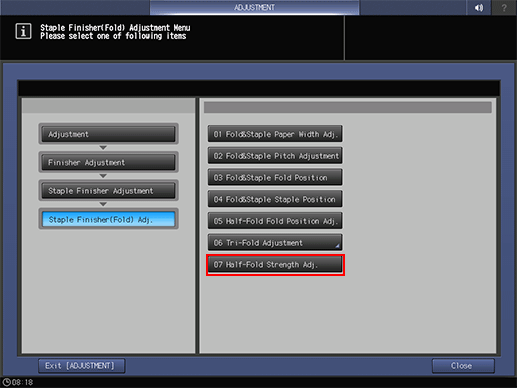

  2. Press [Finisher Adjustment], [Staple Finisher Adjustment], [Staple Finisher(Fold) Adj.], and [Half-Fold Strength Adj.] in sequence.

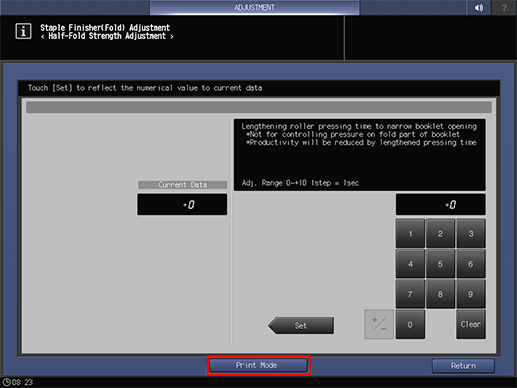

  3. Press [Print Mode].

  4. Load the desired paper into a tray, then select that tray.

    • For [Output Setting], [Fold & Staple] is automatically selected.

  5. Press Start on the control panel.

    A sample pattern will be output.

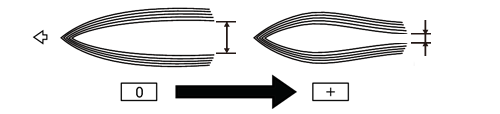

  6. Check if the strength in fold of printed paper is too weak.

  7. Press [Exit PrintMode] to return to the [Half-Fold Strength Adjustment] screen.

  8. If any adjustment is required, use the touch panel keypad to enter the set value.

    • Adjustment Range: (Additional time) 0 to +10 (1 step = 1 sec)

  9. Press [Set] to change the setting with the Current Data.

  10. Repeat steps 3 to 9 until the desired result is obtained.

  11. Press [Return].

    The screen returns to the [Staple Finisher(Fold) Adjustment Menu] screen.
