Vertical Position Adj.(CD): Adjusting the Depth Direction of Punch Hole Positions

Adjust misalignment of punch position with the center of punched output in Punch Kit PK-522 mounted on Finisher FS-532.

Objects of adjustment:
Offset for All Size, A3 , A4 , A4 , SRA4 , A5 , B4 , B5 , 8K , 16K , 16K , 8.5 14 , 8.5 11 , 8.5 11 , 12 18 , 11 17 , 8 13 , 5.5 8.5 , 9 11 , B5

  • If a numeric value is specified for [Offset for All Size], it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for [Offset for All Size].

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

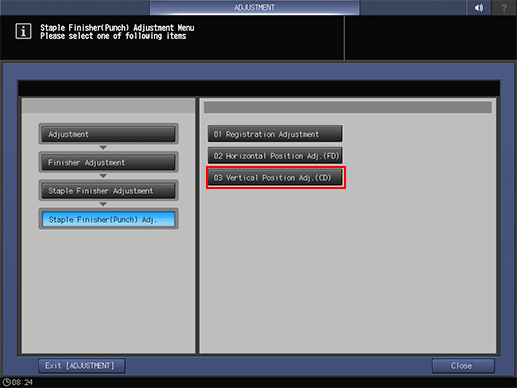

  2. Press [Finisher Adjustment], [Staple Finisher Adjustment], [Staple Finisher(Punch) Adj.], and [Vertical Position Adj.(CD)] in sequence.

  3. Select the size to be adjusted using [] or []

  4. Press [Print Mode].

  5. Load the paper size selected in step 3, then select that tray key.

    • For [Output Setting], [Punch] is automatically selected.

  6. Press Start on the control panel.

    A sample pattern will be output.

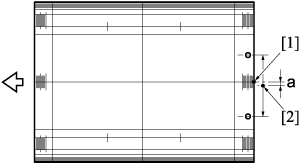

  7. Measure the difference (a) between the center line of printed paper to the center position of punch holes.

    Allowance: a = 0 mm ± 1 mm

  8. Press [Exit PrintMode] to return to the [Vertical Position Adjustment(CD)] screen.

  9. If any adjustment is required, use the touch panel keypad to enter the set value.

    • Adjustment Range: -50 ([Forward]) to +50 ([Backward]) (1 step = 0.1 mm)

    • Press [+/-] to specify the value to be positive or negative.

  10. Press [Set] to change the setting with the Current Data.

  11. Repeat steps 4 to 10 until the desired result is obtained.

  12. Press [Return].

    The screen returns to the [Staple Finisher(Punch) Adjustment Menu] screen.
