Home Settings and AdjustmentsFD-Mag. Auto Adj.(Back): Automatically adjusting the magnification in the paper feed direction on the back side when using the ADF

FD-Mag. Auto Adj.(Back): Automatically adjusting the magnification in the paper feed direction on the back side when using the ADF

Automatically adjust the magnification in paper feed direction on the back side when scanning on the ADF.

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

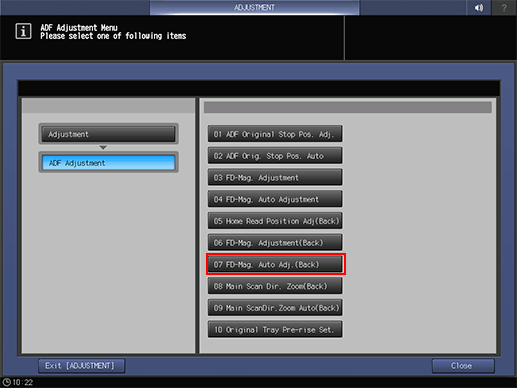

  2. Press [ADF Adjustment] and [FD-Mag. Auto Adj.(Back)] in sequence.

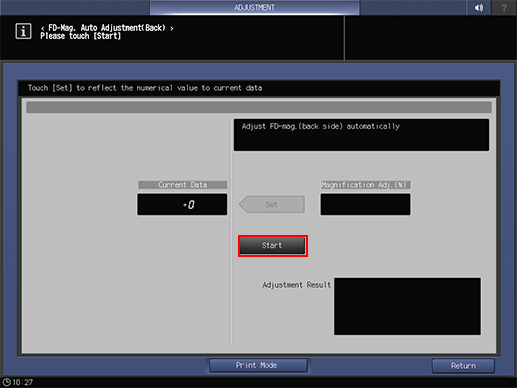

  3. Place the test chart on the ADF tray, and press [Start].

    • Face the back side of the test chart upward and place it in the ADF tray.

  4. Automatic adjustment is performed, and its result is displayed.

    • If it ends successfully, [Adjustment Result] indicates [OK]. If it ends abnormally, [NG] is displayed. Adjust it using the [FD-Mag. Adjustment (Back)].

  5. Make sure that the adjustment result is [OK], and press [Set].

    • The [Magnification Adj.(%)] value is reflected on [Current Data].

  6. Press [Return].

    • The screen returns to the [ADF Adjustment Menu] screen.
