Home Settings and AdjustmentsMain ScanDir.Zoom Auto(Back): Automatically adjusting the magnification in the crosswise direction on the back side when using the ADF

Main ScanDir.Zoom Auto(Back): Automatically adjusting the magnification in the crosswise direction on the back side when using the ADF

Automatically adjust the magnification in crosswise direction on the back side when scanning on the ADF.

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

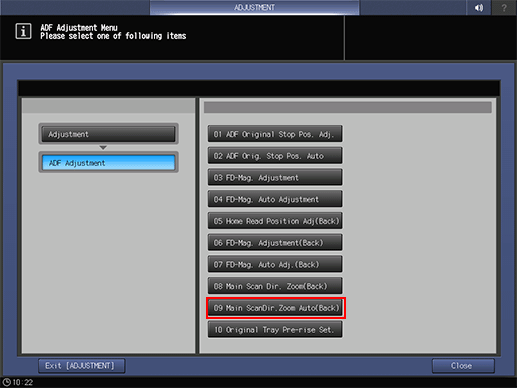

  2. Press [ADF Adjustment] and [Main ScanDir.Zoom Auto(Back)] in sequence.

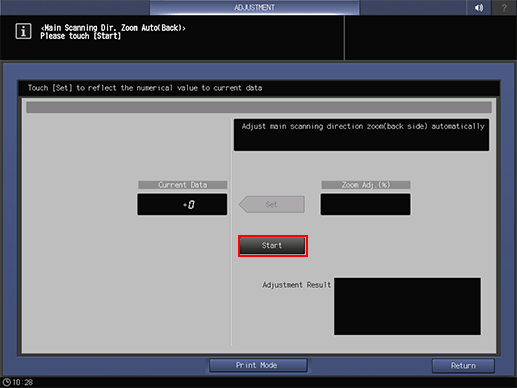

  3. Place the test chart on the ADF tray, and press [Start].

    • Face the test chart surface downward and place it in the ADF tray.

  4. Automatic adjustment is performed, and its result is displayed.

    • If it ends successfully, [Adjustment Result] indicates [OK]. If it ends abnormally, [NG] is displayed. Adjust it using the [Main Scanning Dir. Zoom Auto(Back)].

  5. Make sure that the adjustment result is [OK], and press [Set].

    • The [Magnification Adj.(%)] value is reflected on [Current Data].

  6. Press [Return].

    The screen returns to the [ADF Adjustment Menu] screen.
