Adjust the folded positions in Tri-Fold mode determined by Saddle Stitcher SD-506.

Objects of Adjustment: Offset for All Size, A4 , 8.5 11

  • When adjusting both Fold 1 and Fold 2, be sure to start with the Fold 1 adjustment. The position of Fold 1 is calculated from the edge of the paper, while that of Fold 2 is calculated from the position of Fold 1. Consequently, the measurement (b) in step 7 is subject to the change in either position of the fold.

  • If a numeric value is specified for [Offset for All Size], it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for [Offset for All Size].

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

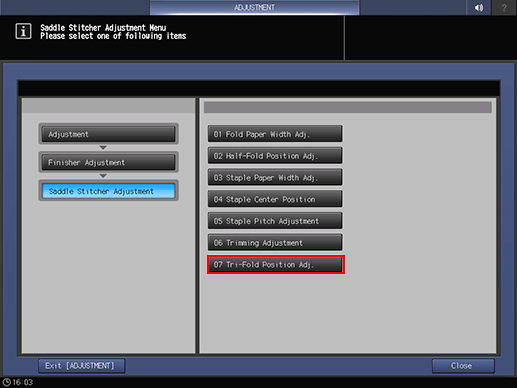

  2. Press [Finisher Adjustment], [Saddle Stitcher Adjustment], and [Tri-Fold Position Adj.] in sequence.

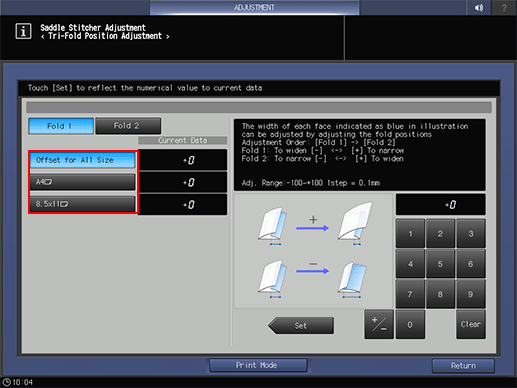

  3. Select the size to be adjusted.

  4. Press [Print Mode].

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Measure the lengths (a) and (b) of the printed paper.

    Allowance: a ± 1.5 mm, b ± 1.5 mm

    Document size

    a

    b

    A4

    97.5 mm ± 1.5 mm

    102.0 mm ± 3.0 mm

    8.5 11

    91.6 mm ± 1.5 mm

    96.1 mm ± 3.0 mm

    [1] Fold 1 [2] Fold 2

  8. If any adjustment is required, press [Exit PrintMode] to return to the [Tri-Fold Position Adjustment] screen.

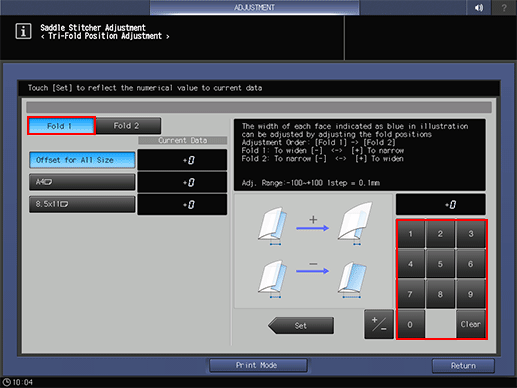

  9. Select [Fold 1], and then use the touch panel keypad to enter the set value.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the current value.

    • Adjustment Range ([Fold 1]): -100 ([To widen]) to +100 ([To narrow]) (1 step = 0.1 mm)

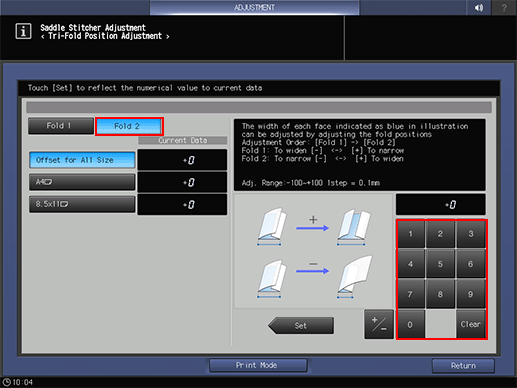

  10. Select [Fold 2], and then use the touch panel keypad to enter the set value.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the current value.

    • Adjustment Range ([Fold 2]): -100 ([To narrow]) to +100 ([To widen]) (1 step = 0.1 mm)

  11. Repeat steps 4 to 10 until the desired result is obtained.

  12. Press [Return].

    The screen returns to the [Saddle Stitcher Adjustment Menu] screen.
