PFU Air Assist Adjustment: Adjusting the Amount of Air Blow

There are air nozzles on the apical part of the feeder and the side guides of each tray in Paper Feeder Unit PF-707 or Paper Feed Unit PF-707m. Air blown from the nozzles makes feeding go smoothly by handling papers.

Depending on the paper type, smooth feeding may be difficult, and it may cause a paper jam. In this case, manually change the air assist settings. You can manually adjust the settings while checking the condition of air blow in the tray by shining a light from the air nozzle confirmation window of the tray.

  • PFU Air Assist Adjustment is not displayed by default. To use this setting, please contact your service representative.

  • Tray 3 cannot be checked from the air nozzle confirmation window. To make the Air Assist settings for tray 3, manually configure the settings for another tray than tray 3, then set the same adjustment value.

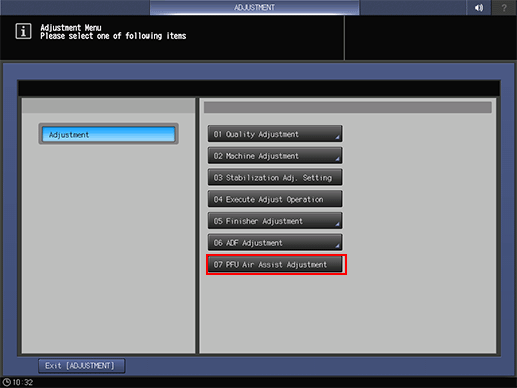

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

  2. Press [PFU Air Assist Adjustment].

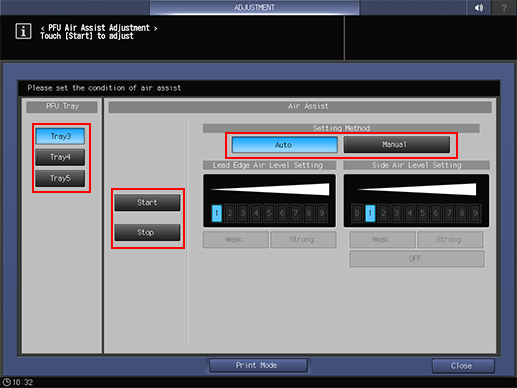

  3. Select the tray to be adjusted.

  4. Select [Auto] or [Manual] in Setting Method.

    • When selecting [Auto], [Lead Edge Air Level Setting] and [Side Air Level Setting] is set automatically depending on paper size, paper type, and paper weight.

  5. Press [Start].

    Air starts blowing.

    • When selecting [Auto] in step 4, and then check the air level and go to step 8.

    • When selecting [Manual] in step 4, and then go to step 6.

  6. Adjust [Lead Edge Air Level Setting].

    • Adjust while confirming the amount of paper float from the air nozzle confirmation window.

    • Adjustment Range: 1 ([Weak]) to 9 ([Strong])

    • When pressing [Weak], the air blow of the lead edge becomes weak and it may improve the feeding for thin paper. When pressing [Strong], the air blow of the lead edge becomes strong and it may improve the feeding for thick paper.

  7. Adjust [Side Air Level Setting].

    • Adjust while confirming the amount of paper float from the air nozzle confirmation window.

    • Adjustment Range: [OFF], 1 ([Weak]) to 9 ([Strong])

    • When pressing [Weak], the air blow of the side becomes weak and it may improve the feeding for thin paper. When pressing [Strong], the air blow of the side becomes strong and it may improve the feeding for thick paper. Press [OFF] to turn off the air blow of the side.

  8. Press [Stop].

    Air stops blowing.

  9. Press [Print Mode].

    • The tray to be adjusted is automatically selected.

  10. Press Start on the control panel.

    • Confirm the condition of the paper feeding from the air nozzle confirmation window.

  11. Press [Exit PrintMode].

  12. Repeat steps 4 to 11 until the desired result is obtained.

  13. Press [Close].

    The screen returns to the [Adjustment Menu] screen.
