Paper Width Adjustment: Adjusting the Misalignment of Printed Paper in the Crosswise Direction on the Stacker Tray

If printed paper is misaligned in the crosswise paper feed direction on the stacker tray of Large Capacity Stacker LS-506, adjust the position of the exit guides to reduce misalignment and skew in printed paper on the stacker tray.

Objects of Adjustment: Stacker No. 1, Stacker No. 2

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

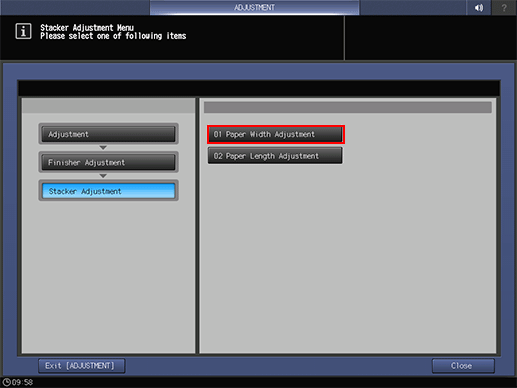

  2. Press [Finisher Adjustment], [Stacker Adjustment], and [Paper Width Adjustment] in sequence.

  3. If two units of Large Capacity Stacker LS-506 are connected, select either [Stacker No.1] or [Stacker No.2].

  4. Press [Print Mode].

  5. Load the desired paper into a tray, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Check that no printed paper is misaligned or skewed.

    a: Misalignment case
    b: Skew case

  8. If any adjustment is required, press [Exit PrintMode] to return to the [Paper Width Adjustment] screen.

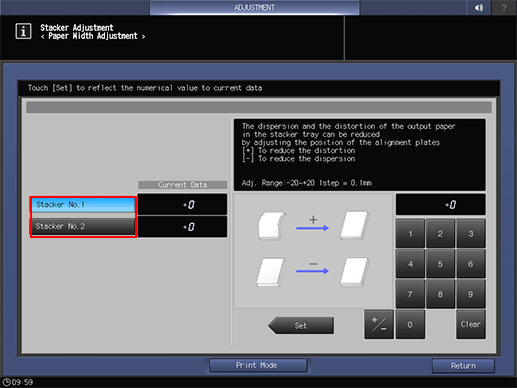

  9. Use the touch panel keypad to enter the set value.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the Current Value.

    • Adjustment Range: -20 ([To reduce dispersion]) to +20 ([To reduce distortion]) (1 step = 0.1 mm)

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press [Return].

    The screen returns to the [Stacker Adjustment Menu] screen.
