Staple Paper Width Adj.: Adjusting the Width of Exit Guides to be Used in Staple Mode

Adjust the width of the exit guides of Saddle Stitcher SD-513 to be used in Staple mode to reduce misalignment and skew in paper.

Objects of Adjustment: Offset for All Size, SRA3 , A3 , B4 , SRA4 , A4 , B5 , 12 18 , 11 17 , 8.5 14 , 8.5 11 , 8 13 , 8K , 16K , Custom (380 to 488 mm), Custom (257 to 379 mm), 13 19

  • If a numeric value is specified for [Offset for All Size], it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for [Offset for All Size].

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

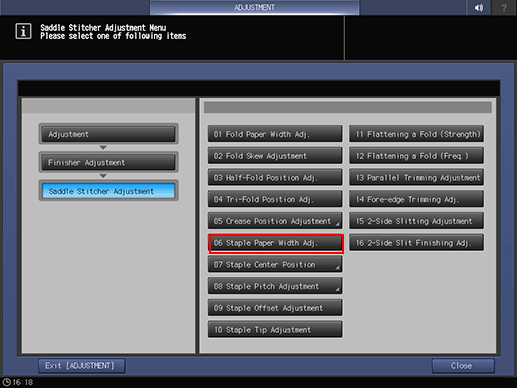

  2. Press [Finisher Adjustment], [Saddle Stitcher Adjustment], and [Staple Paper Width Adj.] in sequence.

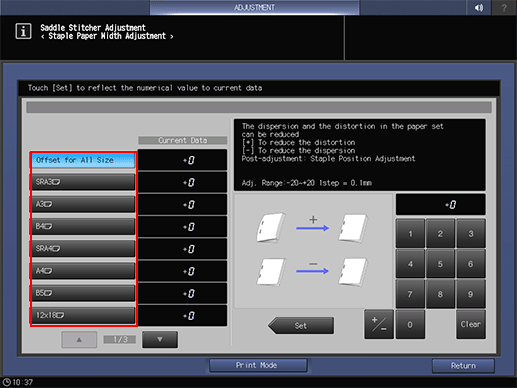

  3. Select the size to be adjusted using [] or [].

  4. Press [Print Mode].

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Check if the stapled set shows misalignment (a), (Caused if specified paper width is larger than the actual width.) or is curved (b). (Caused if specified paper width is smaller than the actual width.)

    Allowance: a = 1 mm or less

  8. If any adjustment is required, press [Exit PrintMode] to return to the [Staple Paper Width Adjustment] screen.

  9. Use the touch panel keypad to enter the set value.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the Current Value.

    • Adjustment Range: -20 ([To reduce the dispersion]) to +20 ([To reduce the distortion]) (1 step = 0.1 mm)

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press [Return].

    The screen returns to the [Saddle Stitcher Adjustment Menu] screen.
