2 Position Staple Center Position

Adjust the center position for 2-position staple in Saddle Stitcher SD-513.

  • Make this adjustment after completing [Half-Fold Position Adj.].

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

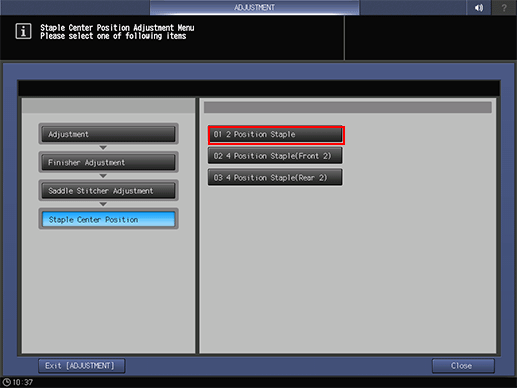

  2. Press [Finisher Adjustment], [Saddle Stitcher Adjustment], [Staple Center Position], and [2 Position Staple] in sequence.

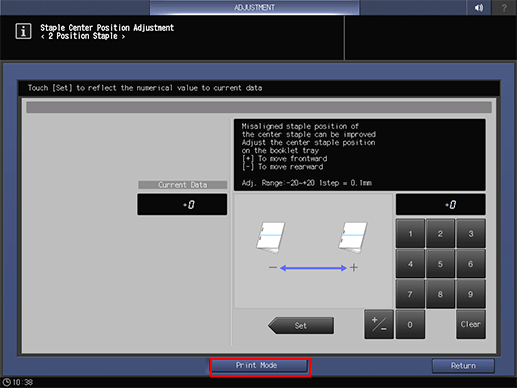

  3. Press [Print Mode].

  4. Load A3 paper or 11 17 paper into any tray, then select its tray button.

  5. Press Start on the control panel.

    A sample pattern will be output.

  6. Check the misalignment between the staple center position and paper center position.

  7. If any adjustment is required, press [Exit PrintMode] to return to the [Staple Center Position Adjustment] screen.

  8. Use the touch panel keypad to enter the set value.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the Current Value.

    • Adjustment Range: -20 ([To move closer to rear edge]) to +20 ([To move closer to front edge]) (1 step = 0.1 mm)

  9. Repeat steps 3 to 8 until the desired result is obtained.

  10. Press [Return].

    The screen returns to the [Staple Center Position Adjustment Menu] screen.
