2 Position Staple Pitch

Adjust the 2-position staple pitch in Saddle Stitcher SD-513.

Objects of Adjustment: Offset for All Size, SRA3 , A3 , B4 , SRA4 , A4 , B5 , 12 18 , 11 17 , 8.5 14 , 8.5 11 , 8 13 , 8K , 16K , Custom (380 to 488 mm), Custom (257 to 379 mm), 13 19

  • If a numeric value is specified for [Offset for All Size], it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for [Offset for All Size].

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

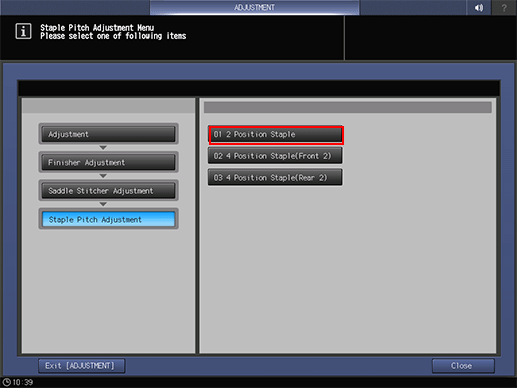

  2. Press [Finisher Adjustment], [Saddle Stitcher Adjustment], [Staple Pitch Adjustment], and [2 Position Staple] in sequence.

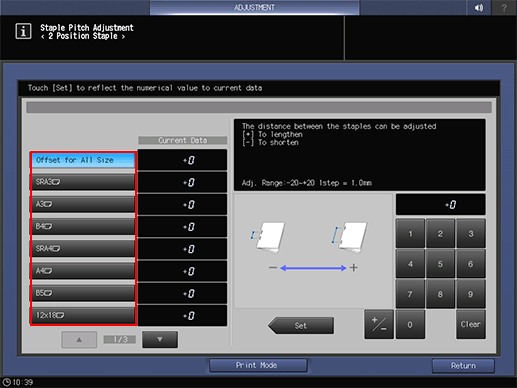

  3. Select the size to be adjusted using [] or []

  4. Press [Print Mode].

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Check the staple pitch (a) of the sample.

  8. If any adjustment is required, press [Exit PrintMode] to return to the [Staple Pitch Adjustment] screen.

  9. Use the touch panel keypad to enter the set value.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the Current Value.

    • Adjustment Range: -20 ([To shorten]) to +20 ([To lengthen]) (1 step = 1.0 mm)

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press [Return].

    The screen returns to the [Staple Pitch Adjustment Menu] screen.
