Adjust the pitch at two locations on the rear edge for 4-position staple in Saddle Stitcher SD-513.

Objects of Adjustment: Offset for All Size, B4 , 8K , 11 17 , A3 , Custom (380 to 488 mm), Custom (257 to 379 mm)

  • If a numeric value is specified for [Offset for All Size], it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for [Offset for All Size].

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

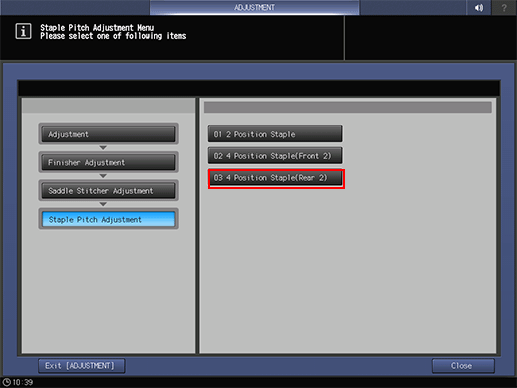

  2. Press [Finisher Adjustment], [Saddle Stitcher Adjustment], [Staple Pitch Adjustment], and [4 Position Staple(Rear 2)] in sequence.

  3. Select the size to be adjusted.

  4. Press [Print Mode].

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. For the paper size, check the pitch at two locations on the rear edge for 4-position staple.

  8. If any adjustment is required, press [Exit PrintMode] to return to the [Staple Pitch Adjustment] screen.

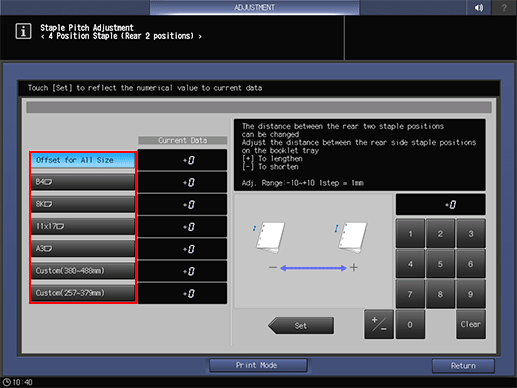

  9. Use the touch panel keypad to enter the set value.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the Current Value.

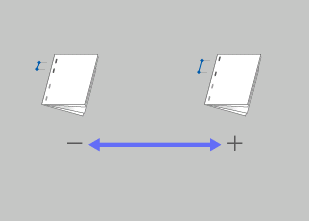

    • Adjustment Range: -10 ([To narrow]) to +10 ([To widen]) (1 step = 1.0 mm)

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press [Return].

    The screen returns to the [Staple Pitch Adjustment Menu] screen.
