Staple Tip Adjustment: Adjusting the Staple Leg Shape

Adjust the staple strength of Saddle Stitcher SD-513 to change the staple leg shape.

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

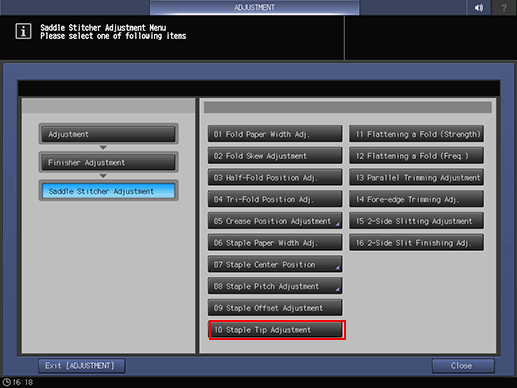

  2. Press [Finisher Adjustment], [Saddle Stitcher Adjustment], and [Staple Tip Adjustment] in sequence.

  3. Press [Print Mode].

  4. Load A3 paper or 11 17 paper into any tray, then select its tray button.

  5. Press Start on the control panel.

    A sample pattern will be output.

  6. Displays the staple leg shape.

  7. Press [Exit PrintMode] to return to the [Staple Tip Adjustment] screen.

  8. If any adjustment is required, use the touch panel keypad to enter the set value.

    • Adjustment Range: -9 ([To be round]) to +9 ([To be flat]) (1 step = 1 msec.)

    • Use [+/-] to specify the value to be positive or negative.

  9. Press [Set] to change the Current Value.

  10. Repeat steps 3 to 9 until the desired result is obtained.

  11. Press [Return].

    The screen returns to the [Saddle Stitcher Adjustment Menu] screen.
