Flattening a Fold (Freq.): Adjusting the Roller Reciprocation Count

Adjust the number of roller reciprocation times when forming the booklet spine using Folding Unit FD-504 mounted in Saddle Stitcher SD-513.

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

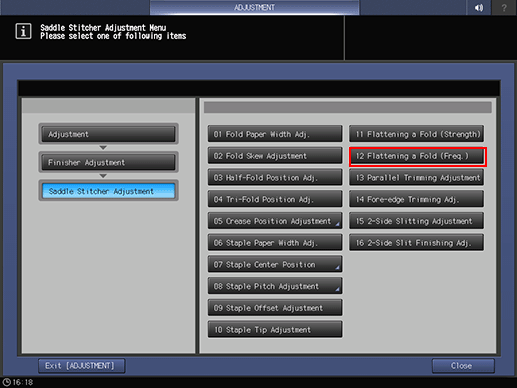

  2. Press [Finisher Adjustment], [Saddle Stitcher Adjustment], and [Flattening a Fold (Freq.)] in sequence.

  3. Press [Print Mode].

  4. Load A3 paper or 11 17 paper into any tray, then select its tray button.

  5. Press Start on the control panel.

    A sample pattern will be output.

  6. Check the spine of the output booklet.

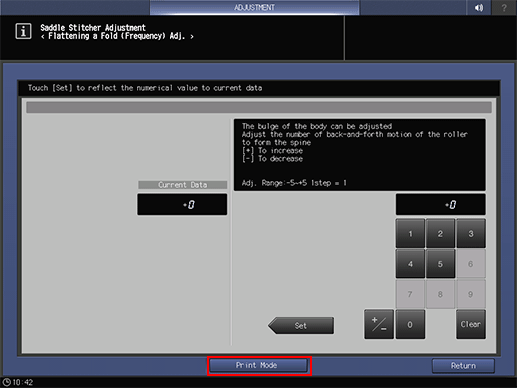

  7. Press [Exit PrintMode] to return to the [Flattening a Fold (Frequency) Adj.] screen.

  8. If any adjustment is required, use the touch panel keypad to enter the set value.

    • Adjustment Range: -5 ([To decrease]) to +5 ([To increase]) (1 step = 1 roller reciprocation operation)

    • Use [+/-] to specify the value to be positive or negative.

  9. Press [Set] to change the Current Value.

  10. Repeat steps 3 to 9 until the desired result is obtained.

  11. Press [Return].

    The screen returns to the [Saddle Stitcher Adjustment Menu] screen.
