Fold & Staple Stopper: Adjusting the Position of Staples (Only for Finisher FS-612)
When using Finisher FS-612, adjust the Fold&Staple staple position.
Objects of Adjustment: Offset for All Size, A3
, B4 , SRA4 , A4 , 12
18 , 11 17 , 8.5 14 , 8.5 11 , 8 13 , 8K , 16K , SRA3 , Custom (380 to 458 mm), Custom (279 to 379 mm)
Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

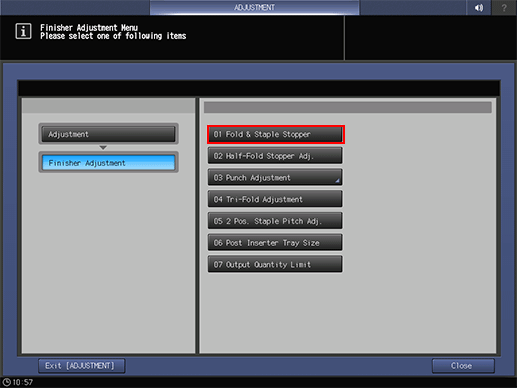

Press [Finisher Adjustment] and [Fold & Staple Stopper] in sequence.

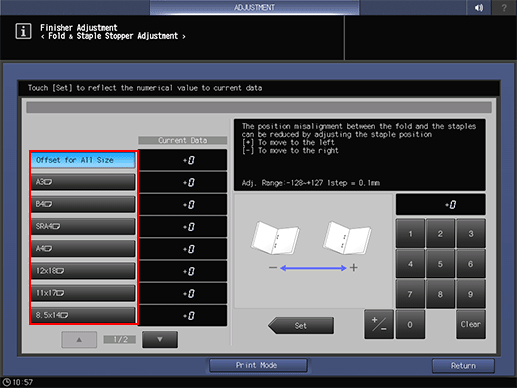

Select the size to be adjusted using [
] or [
].
Press [Print Mode].
Load the paper with the size to be adjusted, then select that tray.
Press Start on the control panel.
A sample pattern will be output.
Measure the difference (a) between the center line and the position of staples.
Allowance: a = 0 mm ± 1 mm
If any adjustment is required, press [Exit PrintMode] to return to the [Fold & Staple Stopper Adjustment] screen.
Use the touch panel keypad to enter the set value.
Use [+/-] to specify the value to be positive or negative.
Press [Set] to change the current value.
Adjustment Range: -128 ([To move to the right]) to +127 ([To move to the left]) (1 step = 0.1 mm)
Repeat steps 4 to 9 until the desired result is obtained.
Press [Return].
The screen returns to the [Finisher Adjustment Menu] screen.
