Vertical Position Adj.: Adjusting the Misalignment in the Center Position of the Printed Paper and the Center between the Punch Holes

Adjust the misalignment between the center of the printed paper and that of punch holes, when using Punch Kit PK-512 or Punch Kit PK-513 mounted on Finisher FS-531 or Finisher FS-612.

Objects of Adjustment: Offset for All Size, A3 , B4 , A4 , A4 , B5 , B5 , A5 , A5 , 11 17 , 8.5 14 , 8.5 11 , 8.5 11 , 5.5 8.5 , 5.5 8.5 , 8 13 , 8K , 16K , 16K , 9 11

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

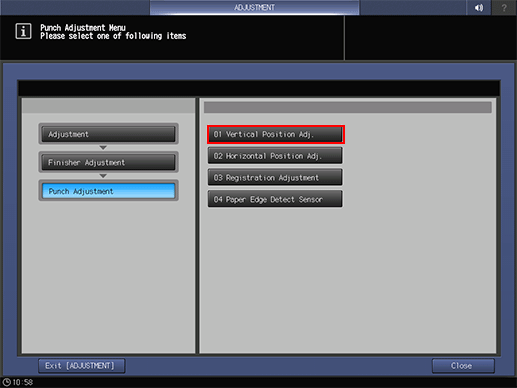

  2. Press [Finisher Adjustment], [Punch Adjustment], and [Vertical Position Adj.] in sequence.

  3. Select the size to be adjusted using [] or [].

  4. Press [Print Mode].

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Measure the difference (a) between the center line of the printed paper and the center between the punch holes.

    Allowance: a = 0 mm ± 1 mm


    [1] Center of paper [2] Center between the punch holes

  8. If any adjustment is required, press [Exit PrintMode] to return to the [Vertical Position Adjustment] screen.

  9. Use the touch panel keypad to enter the set value.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the current value.

    • Adjustment Range: -50 ([To move closer to front edge]) to +50 ([To move closer to rear edge]) (1 step = 0.1 mm)

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press [Return].

    The screen returns to the [Punch Adjustment Menu] screen.
